The LTC2123CUK device is a dual-channel, synchronously sampled 250Msps, 14-bit analog-to-digital converter launched by (ADI), featuring a serial JESD204B output. This device is specially designed for digital processing of high-frequency and wide dynamic range signals. The LTC2123CUK is highly suitable for demanding communication applications, featuring AC performance such as 70dB SNR and 90dB spurious dynamic range (SFDR). The 1.25GHz input bandwidth enables the ADC to perform high-frequency undersampling.

Main features

5Gbps JESD204B interface

70dBFS SNR

90dBFS SFDR

Low power: 864mW (total value)

Only 1.8V power supply

Easy to drive 1.5VP-P input range

1.25GHz full-power bandwidth sampling and holding (S/H)

The clock can be selected in a one-to-two frequency ratio

Optional clock duty cycle stabilizer

Low-power sleep and nap modes

The serial SPI port for configuration

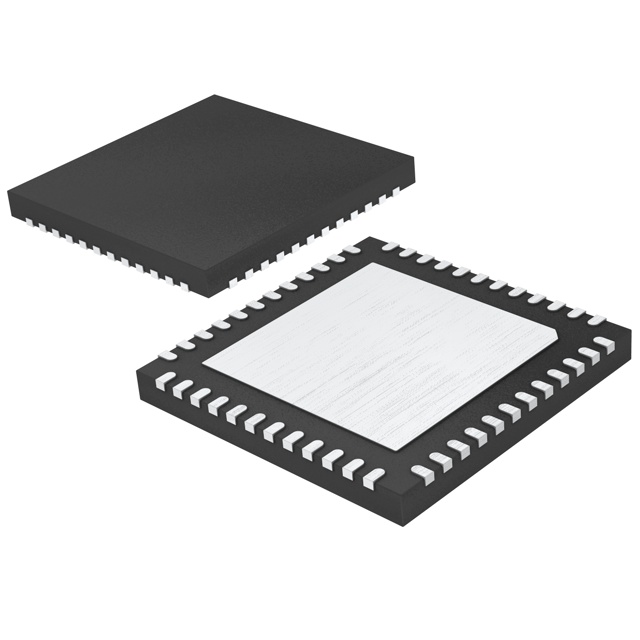

48-pin (7mm x 7mm) QFN package

Typical applications

The LTC2123CUK is applicable to fields such as communication, medical imaging, high-resolution video acquisition, and test measurement, and can handle high-frequency signals with a wide dynamic range. ‌
