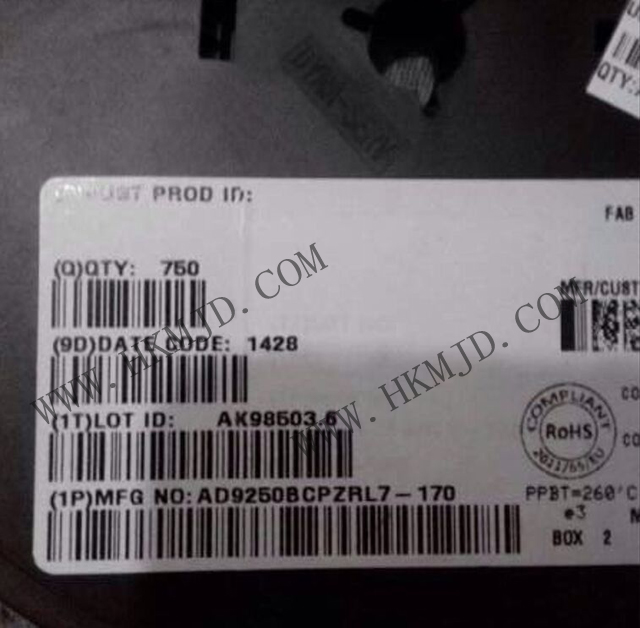

Trade Name:Analogue To Digital Converters - ADC
Brand:ADI
Particular Year:25+
Package:LFCSP-48
Delivery Date:New and original
Stock: 3500pcs
The AD9250BCPZ-170 is a dual-channel 14-bit ADC with a sampling rate of up to 170 MSPS, designed to provide solutions for low-cost, small-sized, wide-bandwidth, and multi-functional communication applications. The following are its core parameters:
Number of digits: 14
Sampling rate (per second) : 170M
Input number: 2
Input type: Difference
Data interface: JESD204B
Configuration: S/H-ADC
Ratio - S/H:ADC: 1:1
A/D converter number: 2
Architecture: Pipeline
Reference type: Internal
Voltage - Power supply, analog: 1.7V to 1.9V
Voltage - power supply, number: 1.7V to 1.9V
Feature: Synchronous sampling
Operating temperature: -40°C to 85°C
Packaging/Housing: 48-LFCSP
The AD9250BCPZ-170 core adopts a multi-level, differential pipeline architecture and integrates output error correction logic. The ADC core features a wide bandwidth input and supports various input ranges selectable by users. Integrated reference voltage sources can simplify the design. Duty cycle stabilizers can be used to compensate for the fluctuations in the duty cycle of the ADC clock, enabling the converter to maintain excellent performance. The JESD204B high-speed serial interface can reduce the wiring requirements of circuit boards and decrease the number of pins needed for receiving devices.
Application scenarios
The AD9250BCPZ-170 is suitable for low-cost, small-sized, wide-bandwidth communication devices and systems that require high-speed data acquisition. It mainly includes
• Diversity radio systems
• Multi-mode digital receivers (3G)TD-SCDMA, WiMax, WCDMA, CDMA2000, GSM, EDGE, LTE
• HFC digital reverse path receiver
• I/Q demodulation system
• Intelligent antenna system
• Electronic test and measurement equipment
• Radar receiver
• COMSEC radio architecture
• IED detection/interference system
• General software-defined radio
• Broadband data application
