The LTC2122CUK is a dual-channel, synchronously sampled 170Msps, 14-bit analog-to-digital converter with a serial JESD204B output. This device is specially designed for digital processing of high-frequency and wide dynamic range signals. The LTC2122CUK is highly suitable for demanding communication applications, featuring AC performance such as 70dB SNR and 90dB spurious dynamic range (SFDR). The 1.25GHz input bandwidth enables the ADC to perform high-frequency undersampling.

Core features

6.0Gbps JESD204B interface

Two ADCs only require one output channel (FS ≤ 150Msps)

70dBFS SNR

90dBFS SFDR

Low power: 751mW (total value)

Only 1.8V power supply

Easy to drive 1.5VP-P input range

1.25GHz full-power bandwidth sampling and holding (S/H)

The clock can be selected in a one-to-two frequency ratio

Optional clock duty cycle stabilizer

Low-power sleep and nap modes

The serial SPI port for configuration

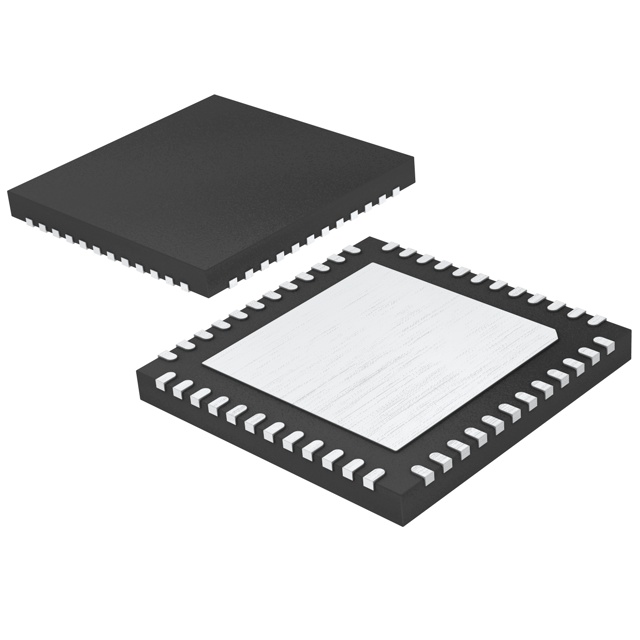

48-pin (7mm x 7mm) QFN package

Typical applications

Communication

Cellular base station

Software-defined radio

Medical imaging

High-definition video

Testing and measuring instruments and meters
