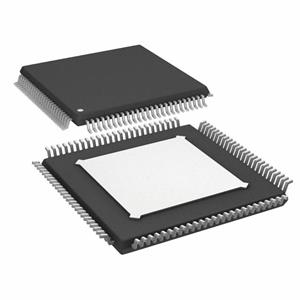

For picture reference, please see the specifications
< >

Commodity Model:AD9277BSVZ

Trade Name:Analogue To Digital Converters - ADC

Brand:ADI

Particular Year:25+

Package:TQFP-100

Delivery Date:New and original

Stock: 2250pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD9277BSVZ
Package
TQFP-100
Describe
Eight-channel, 14-bit low-power analog-to-digital converter (ADC

Product Description

The AD9277BSVZ device is a low-cost, 14-bit low-power analog-to-digital converter (ADC) launched by Analog Devices (ADI). It is equipped with an eight-channel variable gain amplifier (VGA), a low-noise preamplifier (LNA), an anti-aliasing filter (AAF), a 14-bit 10 MSPS to 50 MSPS analog-to-digital converter (ADC), and an I/Q demodulator with programmable phase rotation.


Each channel features a variable gain range of 42 dB, a fully differential signal path, an active input preamplifier terminal, a maximum gain of 52 dB, and an ADC with a conversion rate up to 50 MSPS. The channel is specifically optimized for dynamic range and low power consumption, making it suitable for applications that require small package sizes.


Technical parameters

Types: AAF, ADC, Demodulator, LNA, VGA

Number of channels: 8

Resolution (bits) : 14 b

Sampling rate (per second) : 10M to 50M

Data interface: SPI

Power supply voltage source: Analog and digital

Voltage - Power supply: 1.8V, 3V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Packaging/Housing: 100-TQFP


The AD9277BSVZ is manufactured using advanced CMOS technology and is available in a 16mm × 16mm, RoHS-compliant 100-pin TQFP package with a rated temperature range of -40 °C to +85°C in the industrial temperature range. Its typical applications include:

Medical imaging/ultrasound

Automobile radar
