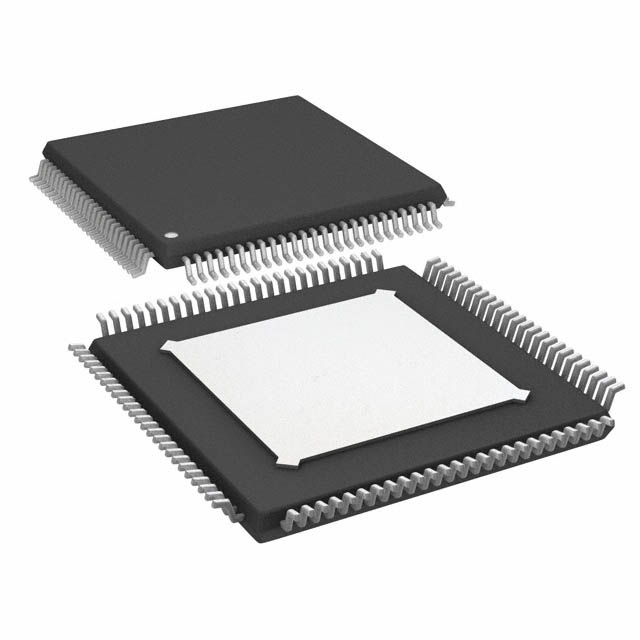

For picture reference, please see the specifications
< >

Commodity Model:AD9276BSVZ

Trade Name:Analogue To Digital Converters - ADC

Brand:ADI

Particular Year:25+

Package:TQFP-100

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD9276BSVZ
Package
TQFP-100
Describe
Eight-channel, 12-bit low-power analog-to-digital converter (ADC

Product Description

The AD9276BSVZ is a low-cost, low-power, small-sized and easy-to-use 12-bit analog-to-digital converter (ADC). It has 8 built-in channels, each of which includes a variable gain amplifier (VGA) with a low-noise preamplifier (LNA), an anti-aliasing filter (AAF), a 12-bit analog-to-digital converter (ADC) with a sampling rate of 10MSPS to 80MSPS, and a phase-rotatable programmable I&Q demodulator.


The AD9276BSVZ features the following core characteristics:

Eight channels with LNA, VGA, AAF, ADC and I&Q demodulators

Low-noise preamplifier (LNA) - For more information, please refer to the data sheet.

Variable Gain Amplifier (VGA

The attenuator range is from -42dB to 0dB

The rear amplification gain =21dB/24dB/27dB/30dB

dB linear gain control

Anti-aliasing Filter (AAF

Programmable 2nd order LPF(low-pass filter), with a cut-off frequency range of 8MHz to 18MHz

Programmable HPF(High-Pass Filter

Analog-to-digital converter (ADC) - For more information, please refer to the data sheet.

CW mode I&Q demodulator

Independent programmable phase rotation

The output dynamic range per channel is >160dBc/√Hz

Low power consumption: When sampling at 12-bit /40MSPS(TGC), the power consumption per channel is 195mW

In CW Doppler mode, the power consumption per channel is 90mW

Flexible turn-off mode

Overload recovery time is less than 10 ns

Fast recovery from low-power standby mode, less than 2 μs

100-pin TQFP-EP package


Application scenarios

Medical imaging/ultrasound

Automobile radar
