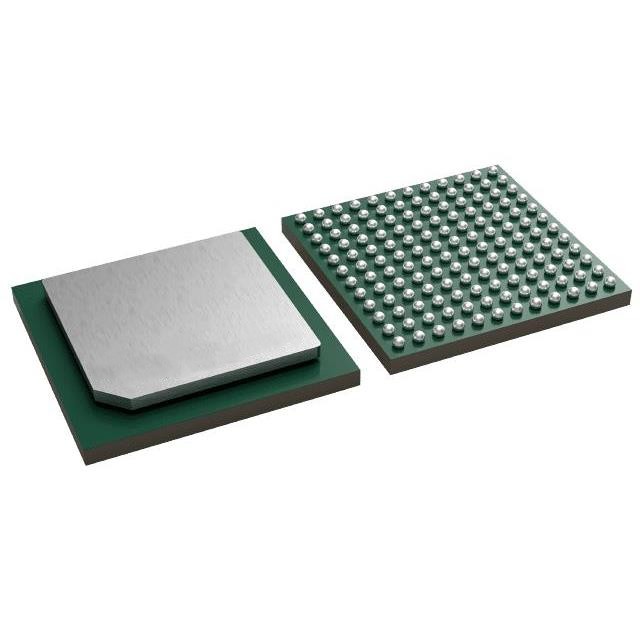

ADC12QJ800AAVTQ1 is a quad-channel, 12-bit, 800MSPS analog-to-digital converters (ADC). Low power consumption, high sampling rate and 12-bit resolution makes the ADC12QJ800AAVTQ1 suited for light detection and ranging (LiDAR) systems. The ADC12QJ800AAVTQ1 is qualified for automotive applications.

Feature Of ADC12QJ800AAVTQ1

AEC-Q100 qualified for automotive applications:

Temperature grade 1: –40°C to +125°C, TA

ADC Core:

Resolution: 12 Bit

Maximum sampling rate: 800MSPS

Non-interleaved architecture

Internal dither reduces high-order harmonics

Performance specifications (–1dBFS):

SNR (97MHz): 57.6dBFS

ENOB (97MHz): 9 Bits

SFDR (97MHz): 62dBFS

Noise floor (–20dBFS): –146.1dBFS/Hz

Full-scale input voltage: 800mVPP-DIFF

Full-power input bandwidth: 6GHz

JESD204C Serial data interface:

Support for 2 to 8 (Quad/Dual channel) or 1 to 4 (Single channel) total SerDes lanes

Maximum baud-rate: 17.16Gbps

64B/66B and 8B/10B encoding modes

Subclass-1 support for deterministic latency

Compatible with JESD204B receivers

Optional internal sampling clock generation

Internal PLL and VCO (7.2–8.2GHz)

SYSREF Windowing eases synchronization

Four clock outputs simplify system clocking

Reference clocks for FPGA or adjacent ADC

Reference clock for SerDes transceivers

Timestamp input and output for pulsed systems

Power consumption (800MSPS):

Quad Channel: 415mW / channel

Dual channel: 555mW / channel

Single channel: 830mW

Power supplies: 1.1V, 1.9V

Application Of ADC12QJ800AAVTQ1

Light detection and ranging (LiDAR)
