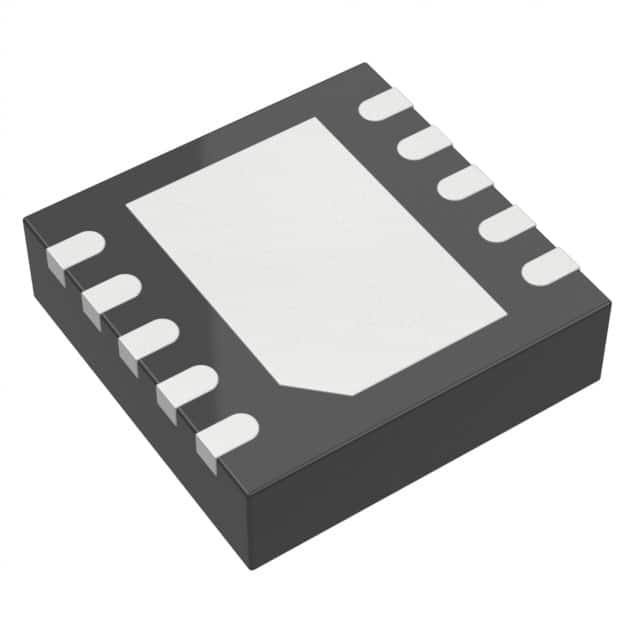

The LTC2601CDD-1 is a single-channel 16-bit, 2.5V to 5.5V rail-to-rail voltage output DAC in a 10-pin DFN package. This device is equipped with a high-performance output buffer and ensures monotonic characteristics. The following are its core features:

The smallest pin-compatible single-channel 16-bit DAC

Ensure monotonic characteristics throughout the entire working temperature range

A wide power supply voltage range from 2.5V to 5.5V

Low-power operation: 300µA/3V

The current consumption can be as low as 1µA (maximum value).

High rail-to-rail output drive current (±15mA, minimum value)

Double-buffered data latch

Asynchronous DAC update pin

Power on and reset to the intermediate scale

Compact (3mm x 3mm) 10-pin DFN package

The LTC2601FD-1 adopts a simple SPI/MICROWIRE compatible three-wire serial interface, which can operate at a clock frequency of up to 50MHz. The LTC2601CDD-1 features daisy-chain operation capability, hardware CLR, and asynchronous DAC update (LDAC) pins.

Application scenarios

Mobile communication

Process control and industrial automation

Instrument

Automatic testing equipment
