The AD9152BCPZ is a dual-channel, 16-bit, high dynamic range digital-to-analog converter (DAC) that offers a maximum sampling rate of 2.25 GSPS and can generate multi-carriers up to Nyquist frequencies. The AD9152BCPZ has been optimized to seamlessly interface with ADI's ADRF6720 analog Quadrature modulator (AQM). The optional three-wire or four-wire serial port interface (SPI) allows for programming and readback of many internal parameters. The full-scale output current can be programmed within the range of 4 mA to 20 mA.

Technical specifications

Number of digits: 16

Number of digital-to-analog converters: 2

Establishment time: -

Output type: Current - Unbuffered

Differential output: Yes

Data interface: JESD204B

Reference type: Internal

Voltage - Power supply, analog: 3.13V to 3.47V

Voltage - power supply, number: 1.14V - 1.26V

INL/DNL (LSB) : ±10, ±5

Architecture: Current source

Operating temperature: -40°C to 85°C

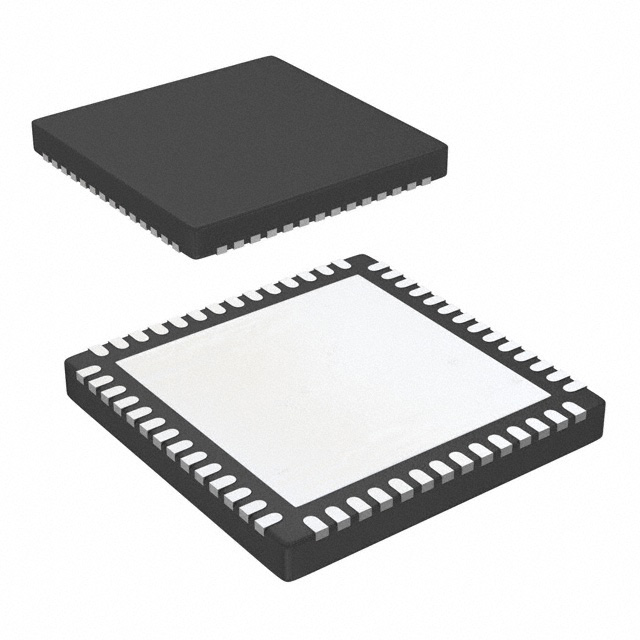

Packaging/Housing: 56-LFCSP

Target application

Wireless communication

Multi-carrier LTE and GSM base stations

Broadband repeater

Software-defined radio

Broadband communication

Point-to-point microwave radio

LMDS/MMDS

Transmit diversity, multiple input/multiple output (MIMO)

Instruments and meters

Automatic testing equipment
