The AD9164BBCAZ is a high-performance 16-bit digital-to-analog converter (DAC) and direct digital frequency synthesizer (DDS), supporting an update rate of up to 6 GSPS. The DAC core is based on a four-channel switch structure, combined with a 2x interpolation filter, which enables the effective update rate of the DAC to reach up to 12 GSPS in certain modes. The high dynamic range and bandwidth make these Dacs highly suitable for the most demanding high-speed RF DAC applications.

Core features

The DAC update rate can reach up to 12 GSPS (minimum value).

6 GSPS direct RF frequency synthesis (minimum value)

Dc to 2.5 GHz (baseband mode)

Dc to 6 GHz (2 times Non-reset (NRZ) mode)

1.5GHz to 7.5GHz (hybrid mode)

Bypass interpolation

2×, 3×, 4×, 6×, 8×, 12×, 16×, 24×

Outstanding dynamic performance

Fast frequency hopping

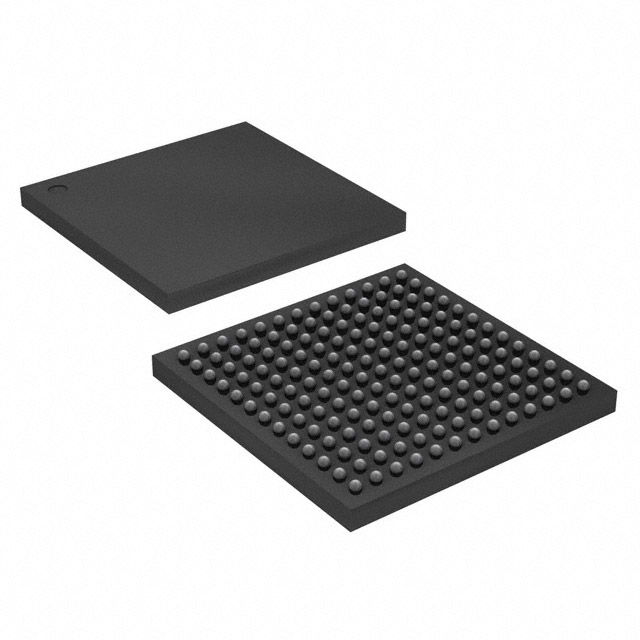

The SPI interface can configure the AD9164BBCAZ and monitor the status of all registers. The AD9164BBCAZ device features 169 pins, 11mm × 11mm, 0.8mm pitch, and CSPBGA package. It is suitable for:

Broadband communication system

DOCSIS 3.1 Cable Modem Terminal System (CMTS)/ Video on Demand (VOD)/ Edge Quadrature Amplitude Modulation (EQAM)

Wireless communication infrastructure

W-CDMA, LTE, LTE-A, point-to-point
