The AD5544ACPZ-1 is a 16-bit, current-output digital-to-analog converter (DAC) with an operating voltage range of 2.7V to 5.5V. The full-scale output current is determined by the applied external reference input voltage (VREFX). When used in conjunction with an external current-to-voltage precision amplifier, the integrated feedback resistor (RFB) can provide temperature tracking and full-scale voltage output.

Core features

16-bit resolution

Integral nonlinearity (INL) : ±1 LSB (Class B)

Full-scale current: 2 mA ± 20%, VREF = ±10 V

±0.1% establishment time: 0.9 μs

Multiplication bandwidth: 12 MHz

Intermediate level glitch: -1 nV/s

Reset the intermediate level or zero level

Four separate four-quadrant multiplicative reference voltage inputs

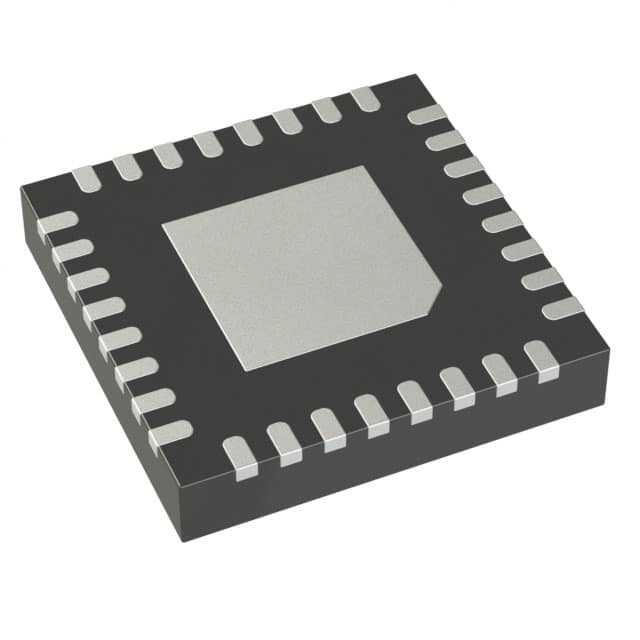

Compact 32-pin LFCSP

The dual-buffered serial data interface utilizes serial data input (SDI), chip selection (CS), and clock (CLK) signals to provide high-speed, three-wire, SPI, and microcontroller compatible inputs. The AD5544ACPZ-1 is suitable for instruments and meters, automatic test equipment, and industrial control fields that require high-precision current output. ‌
