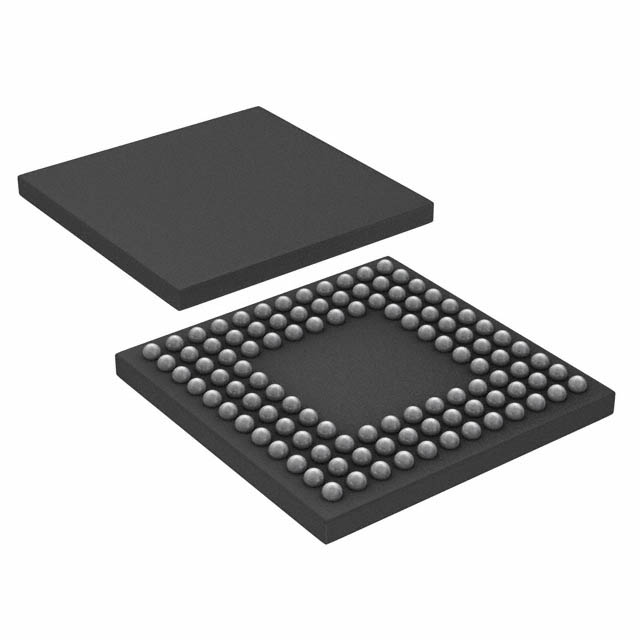

The AD5378ABCZ is a chip integrating 32 14-bit digital-to-analog converters (Dacs), packaged in CSPBGA, and is suitable for high-precision voltage output scenarios.

Core features

A 32-channel DAC packaged in a 13mm × 13mm 108-pin CSPBGA

Ensure 14-bit monotonicity

Buffer voltage output

Output voltage range: 3.5V × VREF(+)

Maximum output voltage range: 17.5V

User-programmable

System calibration function for offset and gain

Pseudo-differential output relative to REFGND

The AD5378ABCZ features a dual-buffered parallel interface. Under the control of the address pins A0 to A7 of the WR, CS, and DAC channels, 14 data bits can be loaded into one of the input registers. The AD5378ABCZ also features a 3-wire serial interface compatible with SPI®, QSPI™, MICROWIRE™ and DSP interface standards, capable of handling clock speeds up to 50 MHz.

Application scenarios

The level setting of the automatic test equipment (ATE)

Variable Light Attenuator (VOA

Optical switch

Industrial control system
