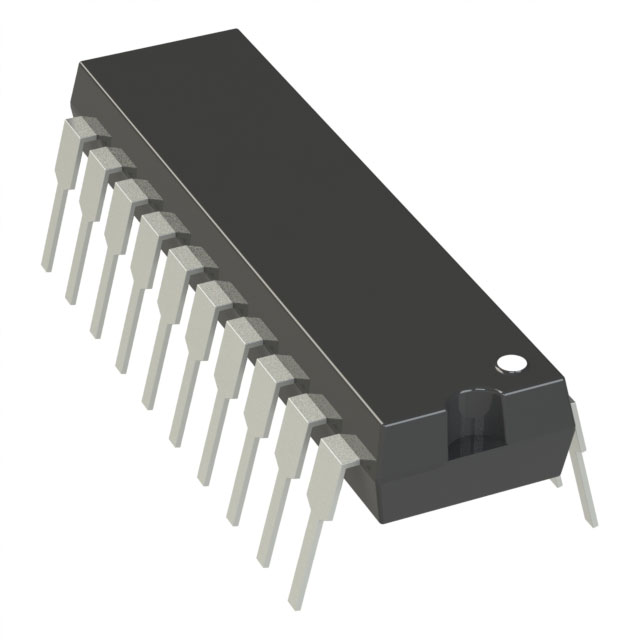

The AD7549JNZ is a single-chip, dual-channel, 12-Bit current output DAC. It adopts a 20-pin DIP package. Both Dacs offer four-quadrant multiplication functionality, and each DAC has a separate reference voltage input and feedback resistor. The single-chip structure can ensure excellent heat dissipation tracking and gain error tracking characteristics between the two Dacs.

Main features

Two dual-buffered 12-bit Dacs

Four-quadrant multiplication

Low gain error (maximum value is 3 LSB)

DAC trapezoidal resistor matching: 1%

Ultra-small DIP and surface mount packages save space

There is no latching phenomenon

It can operate within an extended temperature range

Application scenarios

The AD7549JNZ is suitable for automated test equipment, process control, audio systems, and precision power supply designs that require dual-channel synchronous updates. ‌

Technical parameters

Number of digits: 12

Number of digital-to-analog converters: 2

Establishment time: 1.5µs

Output type: Current - Unbuffered

Differential output: None

Data interface: Parallel

Reference type: External

Voltage - Power supply, analog: 15V

Voltage - Power supply, number: 15V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 85°C

Packaging/Housing: 20-DIP
