The AD5726YRSZ-1500 is a four-channel, 12-bit, serial input, voltage-output digital-to-analog converter (DAC) manufactured using ADI's iCMOS® process technology, ensuring monotonicity with a maximum integrated nonlinearity (INL) error of ±1 LSB. This device adopts a serial interface, can operate at a maximum clock rate of 30 MHz, and is compatible with DSP and microcontroller interface standards. By using the asynchronous CLR function, all DAC registers can be reset to the zero level or intermediate level output that the user can select.

Core parameter

Number of digits: 12

Number of digital-to-analog converters: 4

Establishment time: 13µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interfaces: SPI, DSP

Reference type: External

Voltage - Power supply, analog: ±5V to 15V

Voltage - power supply, number: 5V - 15V

INL/DNL (LSB) : ±1 (maximum), ±1 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 125°C

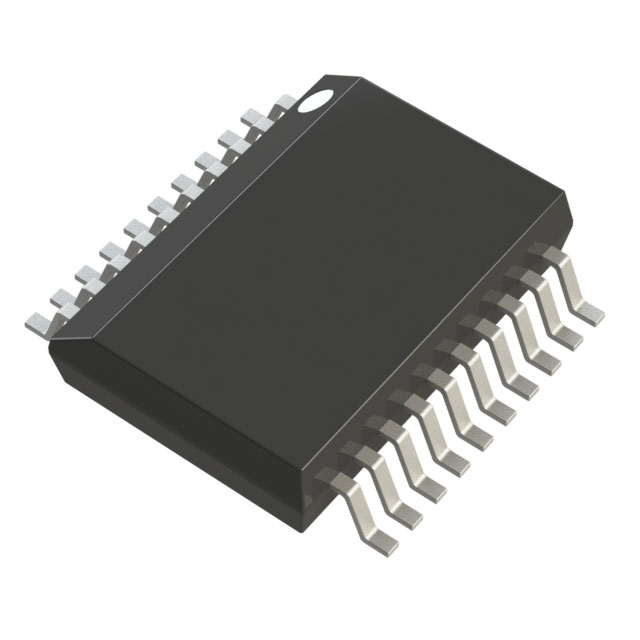

Packaging/Housing: 20-SSOP

Typical applications

The AD5726YRSZ-1500 is suitable for the following application fields:

- Industrial automation

- Closed-loop servo control, process control

- Automobile testing and measurement

- Programmable logic controller
