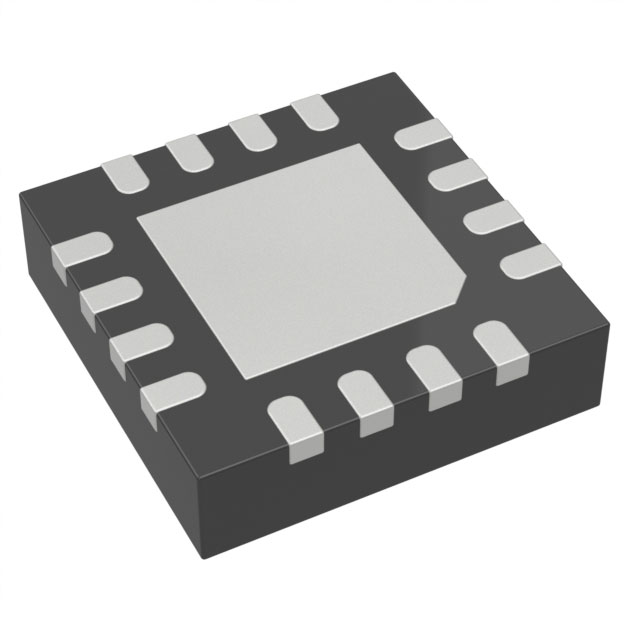

The AD5696ACPZ is a low-power, four-channel, 16-bit buffered voltage output DAC, belonging to the nanoDAC+™ series. This device is equipped with an internal gain selection pin, and its full-scale output is 0V to VREF (gain = 1) or 0V to 2VREF (gain = 2). The AD5696ACPZ is powered by a single supply ranging from 2.7V to 5.5V. Its design ensures monotonicity and features a gain error of less than 0.1% FSR and a offset error of 1.5mV.

Core performance

High relative accuracy (INL) : up to ±2 LSB at 16 bits

Small package: 3mm × 3mm, 16-pin LFCSP

Total unadjustable error (TUE) : ±0.1% FSR (maximum value)

Offset error: ±1.5 mV (maximum value)

Gain error: ±0.1% FSR (maximum value)

High driving capacity: 20 mA, 0.5V (power rail)

User-selectable GAIN: 1 or 2 (GAIN pin)

Reset to zero level or intermediate level (RSTSEL pin)

1.8V logic compatible

Low burrs: 0.5 nV-s

400 kHz I2C compatible serial interface

Robust HBM (rated at 3.5 kV) and FICDM ESD (rated at 1.5 kV) performance

Low power consumption: 1.8mW (3V)

Powered by a 2.7V to 5.5V power supply

Temperature range: -40 °C to +105°C

The AD5696ACPZ is available in a 16-pin 3mm × 3mm LFCSP package. It is widely applied in the following scenarios

Digital gain and offset voltage adjustment

Programmable attenuator

Process control (PLC I/O card

Industrial automation

Data acquisition system
