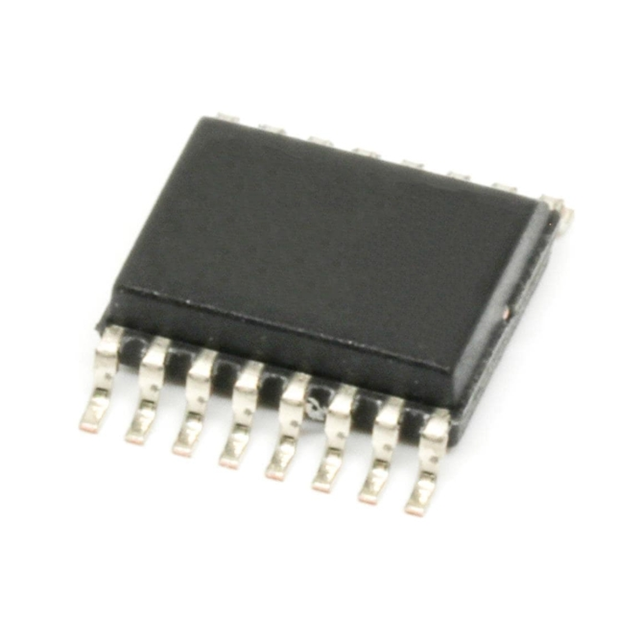

The AD5044BRUZ is a low-power, four-channel 14-bit buffered voltage output nanoDAC® digital-to-analog converter produced by Analog Devices (ADI), featuring a relative accuracy characteristic of 1 LSB INL (integrated nonlinearity) and 1 LSB DNL (differential nonlinearity), with an independent reference voltage pin. The AD5044BRUZ can be powered by a single supply ranging from 4.5V to 5.5V. In addition, it also provides a differential accuracy characteristic of ±1 LSB.

Core features

Low-power four-channel 14-bit DAC, ±1 LSB INL

AD5666 is a pin-compatible and performance-upgraded product

Independent and shared voltage reference pin options

Track-to-track work

Powered by a 4.5V to 5.5V power supply

Power on and reset to zero level or intermediate level

Three types of shutdown functions and independent shutdown functions for each channel

Hardware LDAC and software LDAC coverage functions

CLR function, reset to programmable code

SDO Daisy chain option

14/16 pin TSSOP package

Internal reference voltage buffer and internal output amplifier

The AD5044BRUZ features a multi-functional three-wire, low-power, Schmitt trigger serial interface that can operate at a maximum clock rate of 50 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™ and DSP interface standards. The on-chip provides a reference voltage buffer.

Application field

Process control

Data acquisition system

Portable battery-powered instrument

Digital gain and offset voltage adjustment

Programmable voltage source and current source

Programmable attenuator
