The AD7243BRZ is a complete 12-bit voltage output digital-to-analog converter, integrating an output amplifier and Zener reference voltage source on a single CMOS chip. All rated performance can be achieved without external adjustment. The following are its core parameters:

12-bit CMOS DAC, built-in: on-chip reference voltage source and output amplifier

Three selectable output ranges: -5 V to +5 V, 0 V to +5 V, and 0 V to +10 V

Serial interface

DAC update rate: 300 kHz

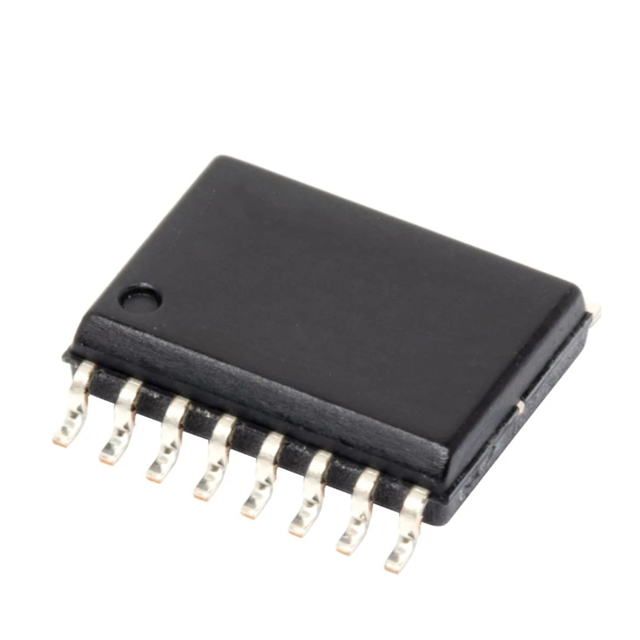

Small size: 16-pin SOIC package

Nonlinearity: ±1/2 LSB (Tmin to Tmax)

Low power consumption: The typical value is 110mW

The AD7243BRZ features a fast and multi-functional serial interface, allowing for easy connection to microcomputers and 16-bit digital signal processors equipped with serial ports. The maximum serial data rate can reach 5 MHz, and the DAC update rate can reach 300 kHz. It also provides serial data output function and supports multi-DAC systems to be connected in a daisy-chain manner. This feature enables the system to use any number of Dacs through a simple 4-wire interface. The LDAC can be used to synchronously update the DAC.

Application scenarios

Process control

Industrial automation

Digital signal processing system

Input/output port
