The AD5541JRZ is a single-channel, 16-bit, serial input, voltage output digital-to-analog converter (DAC), powered by a single supply ranging from 2.7V to 5.5V. The DAC output range is from 0V to VREF, ensuring monotonicity and providing 1 LSB INL accuracy (16 bits) without adjustment. The rated temperature range is from -40 °C to +85°C.

Core features

Full 16-bit performance

Single power supply of 3V and 5V

Low power consumption: 0.625mW

Establishment time: 1 μs

The unbuffered voltage output can directly drive a 60 kΩ load

SPI/QSPI/MICROWIRE compatible interface standards

Power-on reset can reset the DAC output to zero to 0V (unipolar mode)

5 kV HBM ESD rated value

Low burrs: 1.1 nV-s

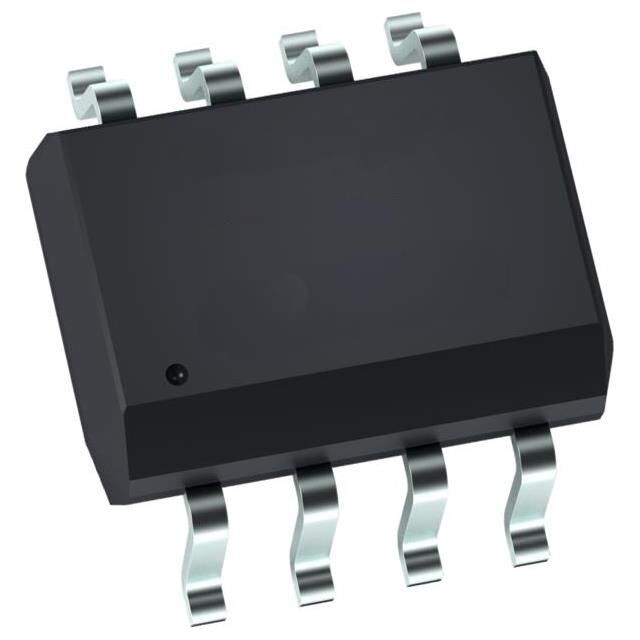

The AD5541JRZ adopts a multi-functional three-wire interface and is compatible with SPI, QSPI™, MICROWIRE™ and DSP interface standards. The AD5541JRZ offers an 8-pin SOIC package.

Target application

- Digital gain and offset voltage adjustment

- Automatic testing equipment

- Data acquisition system

- Industrial process control
