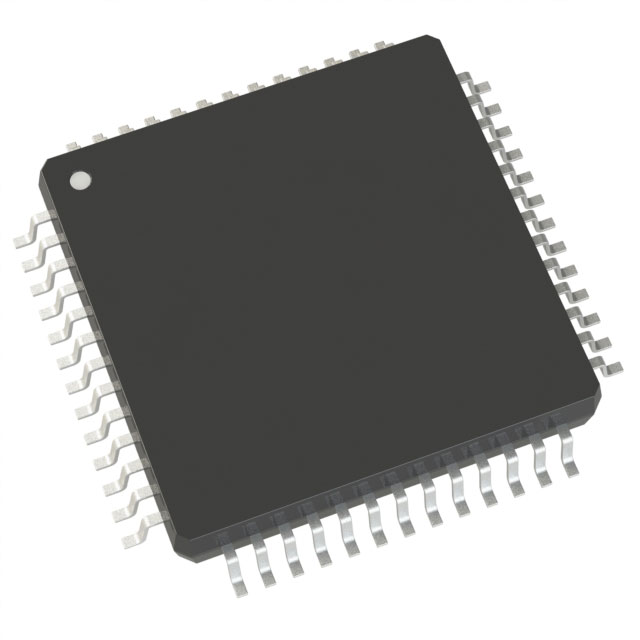

The AD5392BSTZ-5 is an 8-channel, 14-bit single power supply voltage output digital-to-analog converter (DAC) launched by Analog Devices (ADI). This device is packaged in LQFP-52 (with dimensions of 10×10mm) and supports an industrial temperature range (-40℃ to +85℃). The following are its main specifications:

Number of digits: 14

Number of digital-to-analog converters: 8

Establishment time: 8µs

Output type: Voltage-Buffered

Differential output: None

Data interfaces: I2C, SPI, DSP

Reference types: external, internal

Voltage - Power supply, analog: 5V

Voltage - power supply, number: 2.7V - 5.5V

INL/DNL (LSB) : ±3 (maximum), -1/+2 (maximum)

Architecture: Resistor String DAC

Operating temperature: -40°C to 85°C

Packaging/Housing: 52-LQFP

The AD5392BSTZ-5 also features a built-in three-wire serial interface with a speed exceeding 30 MHz, compatible with SPI®, QSPI™, MICROWIRE™ and DSP interface standards. It also features an I2C-compatible interface, supporting a data transmission rate of 400 kHz.

Application scenarios

- Instrumentation and industrial control

- Power amplifier control

- Level Setting (ATE)

- Control systems

- Microelectromechanical Systems (MEM)

- Variable Light Attenuator (VOA)

- Optical transceivers (MSA 300, XFP)
