The AD5422BREZ is a low-cost, precise, fully integrated 16-bit digital-to-analog converter (DAC) launched by Analog Devices (ADI), featuring a built-in programmable current source and programmable voltage output, designed to meet the requirements of industrial process control applications.

Core parameters

Number of digits: 16

Number of digital-to-analog converters: 1

Establishment time: 25µs (V), 40µs (A) (typical values)

Output type: Voltage or Current-Buffered

Differential output: None

Data interfaces: SPI, DSP

Reference types: external, internal

Voltage - Power supply, analog: 10.8V to 40V, -3V to 26.4V

Voltage - power supply, number: 2.7V - 5.5V

INL/DNL (LSB) : -, ±1.3 (maximum)

Architecture: R-2R

Operating temperature: -40°C to 105°C

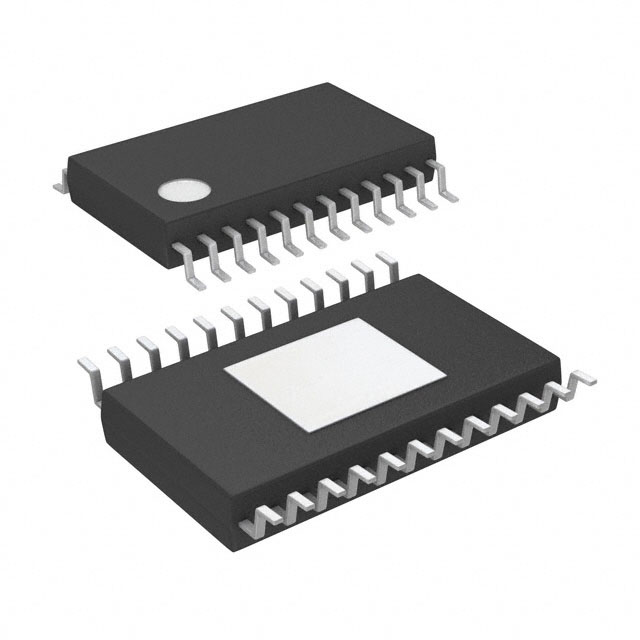

Packaging/Housing: 24-TSSOP

This device includes a power-on reset function to ensure that the device is powered on under a known state. The AD5422BREZ also features an asynchronous CLEAR pin (CLEAR), which can set the output to zero level/intermediate level voltage output or to the lower end of a selected current range.

Applications

- Process control

- Actuator control

- PLC

- HART network connection (LFCSP package only)
