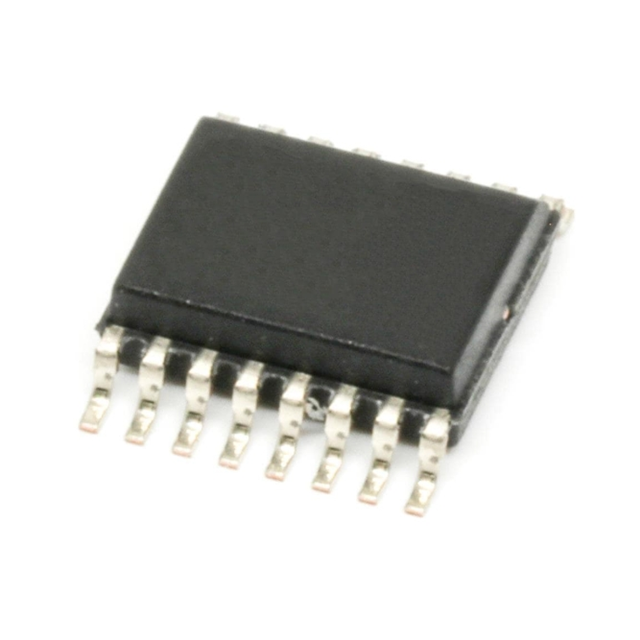

The AD5686RBRUZ is a four-channel, 16-bit, rail-to-rail, voltage-output DAC. This device features a 2.5V, 2ppm/˚C internal reference voltage source (enabled by default) and a gain selection pin, providing full-scale output of 2.5V (gain =1) or 5V (gain =2).

Core features

High relative accuracy (INL) : up to ±2 LSB at 16 bits

Low drift 2.5V reference voltage source: 2 ppm/°C (typical value)

Small package: 16-pin TSSOP

Unadjustable error (TUE) :

0.1% FSR (maximum value)

Offset error: 1.5 mV (maximum value)

Gain error: 0.1% FSR (maximum value)

The AD5686RBRUZ is powered by a single supply ranging from 2.7V to 5.5V. Its design ensures monotonicity, with an FSR gain error of less than 0.1% and a offset error of 1.5mV. This device also features an integrated power-on reset circuit and an RSTSEL pin to ensure that the DAC output is powered on to zero or medium range until a valid write operation is performed. The AD5686RBRUZ features independent power-saving for each channel. In power-saving mode, its power consumption is reduced to 4uA at 3V.

Typical applications

Optical transceiver

Base station power amplifier

Process control (PLC I/O card

Industrial automation

Data acquisition system
