The AD5625RBRUZ-1 device belongs to the nanoDAC® series. It is a low-power, four-channel, 12-bit buffered voltage output digital-to-analog converter (DAC) with or without an on-chip reference voltage source. It is powered by a single supply ranging from 2.7V to 5.5V and is designed to ensure monomonotonization. It also features an I2C-compatible serial interface.

Core parameters

Number of digits: 12

Number of digital-to-analog converters: 4

Establishment time: 4.5µs

Output type: Voltage-Buffered

Differential output: None

Data interface: I2C

Reference types: external, internal

Voltage - Power supply, analog: 2.7V to 5.5V

Voltage - power supply, number: 2.7V - 5.5V

INL/DNL (LSB) : ±0.5, ±0.25 (maximum)

Architecture: Resistor String DAC

Operating temperature: -40°C to 105°C

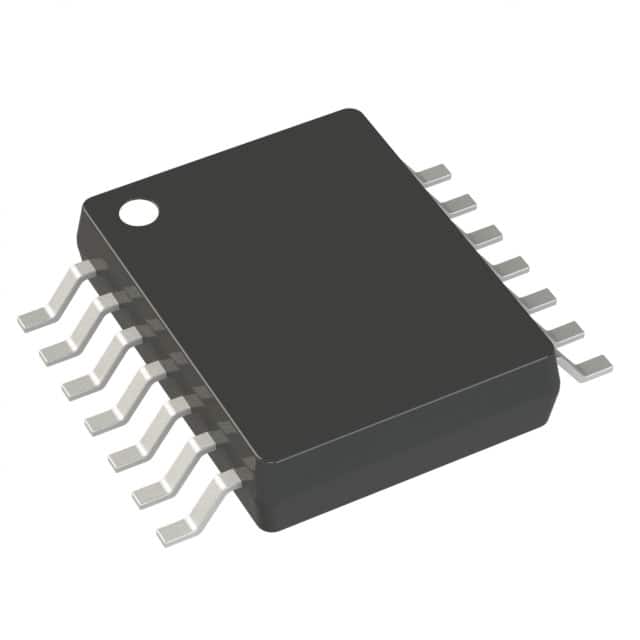

Packaging/Housing: 14-TSSOP

The AD5625RBRUZ-1 is equipped with a built-in power-on reset circuit to ensure that the DAC output is powered on to 0 V (POR = GND) or an intermediate level (POR = VDD) and maintains this level until a valid write operation is executed. The AD5625RBRUZ-1 is equipped with an on-chip precision output amplifier, enabling rail-to-rail output swing.

Applications

- Process control

- Data acquisition system

- Portable battery powered meter

- Digital gain and offset voltage adjustment

- Programmable voltage and current sources

- Programmable attenuator
