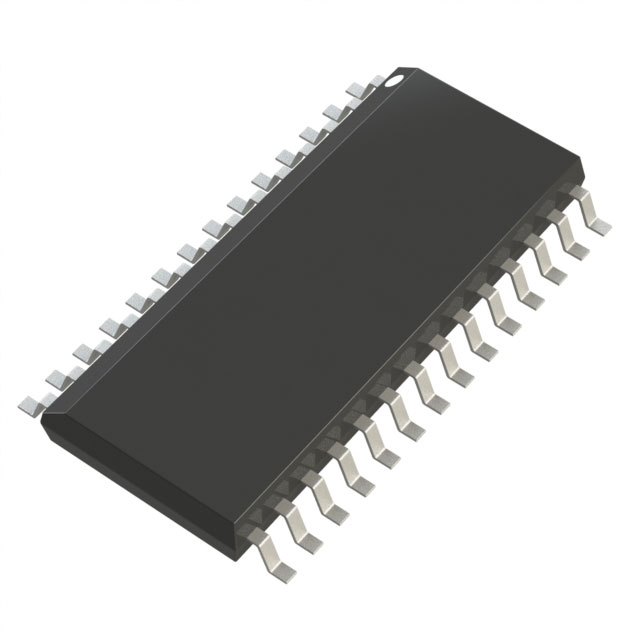

The AD7564BRZ is a single-chip device with four 12-bit Dacs built-in. This device offers standard current output and features separate VREF, IOUT1, IOUT2 and RFB pins, powered by a single supply ranging from + 3.3V to + 5V. The following are its core features:

Four 12-bit Dacs are integrated in one package

Four-quadrant multiplication

A separate reference voltage

Single power supply

When using a + 3.3V /+ 5V power supply, ensure that the specified performance is achieved

Low power consumption

Multifunctional serial interface

Update the function simultaneously

Reset function

28-pin SOIC, SSOP and DIP packages

The AD7564BRZ is a serial input device that uses FSIN, CLKIN and SDIN to load data. The two address pins A0 and A1 can be used to set the device address. By taking advantage of this feature, device loading in a multi-DAC environment can be simplified. Alternatively, A0 and A1 can be ignored, and the Daisy chain system can be configured using the serial output function.

Typical application scenarios

Industrial automation: PLC analog output module, servo driver current control

Test and measurement equipment: multi-channel signal generator, calibration source

Medical instruments: Analog signal synthesis for portable monitors

Communication system: Base station power amplifier bias control
