The DAC8420EPZ is a four-channel, 12-bit voltage output DAC with a serial digital interface and a 16-pin package. The DAC8420EPZ is manufactured using BiCMOS technology and features an extraordinary high circuit density and low power consumption. The simple and easy-to-use serial digital input and fully buffered analog voltage output can achieve rated performance without external devices.

Its key parameters:

Number of digits: 12

Number of digital-to-analog converters: 4

Establishment time: 13µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference type: External

Voltage - Power supply, analog: 5V to 15V, -15V

Voltage - Power supply, number: 5V

INL/DNL (LSB) : ±0.5, ±0.25

Architecture: R-2R

Operating temperature: -40°C to 85°C

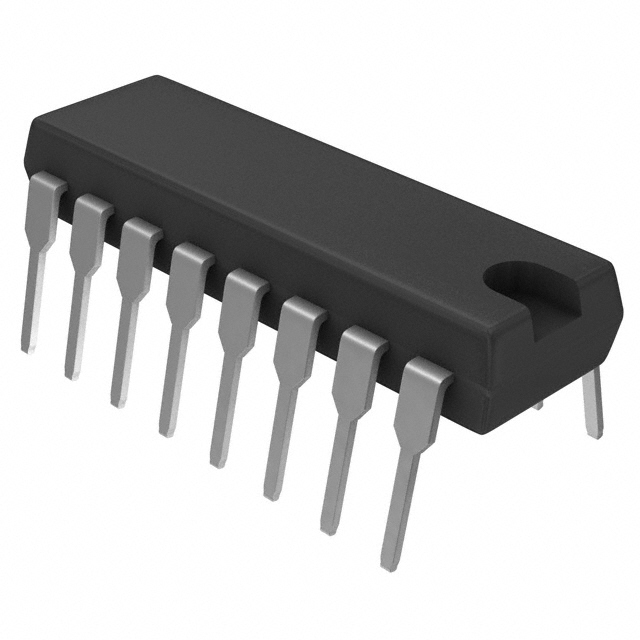

Packaging/Housing: 16-DIP

Typical applications

The DAC8420EPZ device is suitable for applications such as software-controlled calibration, servo controllers, process control, and automatic test equipment.
