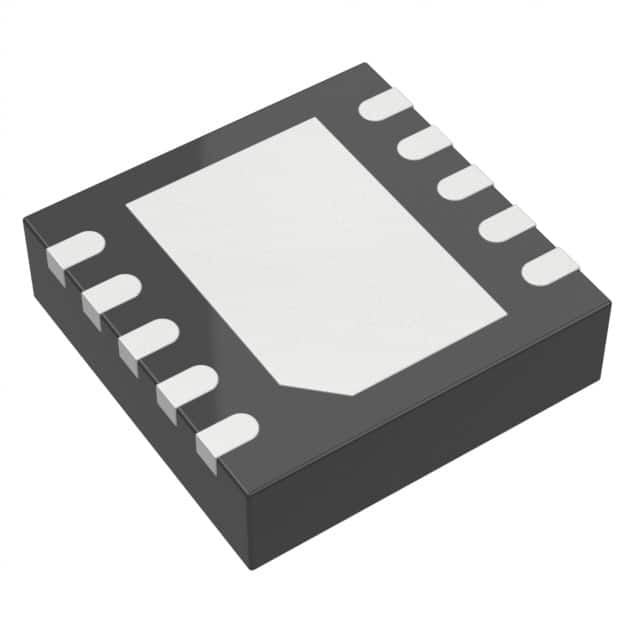

The LTC2642CDD-16 is a 16-bit unbuffered voltage output digital-to-analog converter (DAC) in a 3mm x 3mm DFN package. This DAC adopts a single operating power supply ranging from 2.7V to 5.5V and ensures monotony throughout the entire temperature range.

The LTC2642CDD-16 adopts a simple SPI/MICROWIRE compatible three-wire serial interface, which can operate at a clock rate of up to 50MH z and can be directly connected to an optocoupler to adapt to applications that require isolation.

Technical parameters

Number of digits: 16

Number of digital-to-analog converters: 1

Establishment time: 1µs (typical value)

Output type: Voltage-Unbuffered

Differential output: None

Data interface: SPI

Reference type: External

Voltage - Power supply, analog: 2.7V to 5.5V

Voltage - power supply, number: 2.7V - 5.5V

INL/DNL (LSB) : ±0.5, ±0.5

Architecture: R-2R

Operating temperature: 0°C to 70°C

Package/Housing: 10-DFN

Installation type: Surface mount type

Typical applications

High-resolution offset and gain adjustment

Process control and industrial automation

Automatic testing equipment

Data acquisition system
