The LTC2972CUJF is a 2-channel power system manager used for sequencing faults, fine-tuning (servo), margin setting, monitoring, providing telemetry, and creating fault logs. The PMBus command supports power sorting, precise load point voltage regulation and margin setting. DAC uses a proprietary software connection algorithm to significantly reduce power interference. The monitoring function includes overvoltage and undervoltage, as well as over-temperature and undertemperature threshold limits for two power output channels, and overvoltage and undervoltage threshold limits for a single power input channel.

The LTC2972CUJF mainly features the following characteristics:

Sort, fine-tune, set margin and monitor the two power supplies

Manage faults and monitor telemetry

A command set conforming to the PMBus standard

Supported by LTpowerPlay® GUI

Set and fine-tune the power supply margin within 0.25% of the target range

Monitor the input current (±1%) and accumulated electrical energy

Each channel is equipped with a fast OV/UV monitor

Coordinate sequencing and fault management among multiple ADI PSM devices

Automatically record faults to the internal EEPROM

It can run independently without any additional software

The normal output pin of the configurable power supply

Accurately monitor the output voltage, output current, temperature, as well as the input voltage and current

1.8V to 3.3V I2C/SMBus serial interface

Connect directly to the IMON pin of the voltage regulator

It can be powered by a power supply ranging from 3.3V or 4.5V to 15V

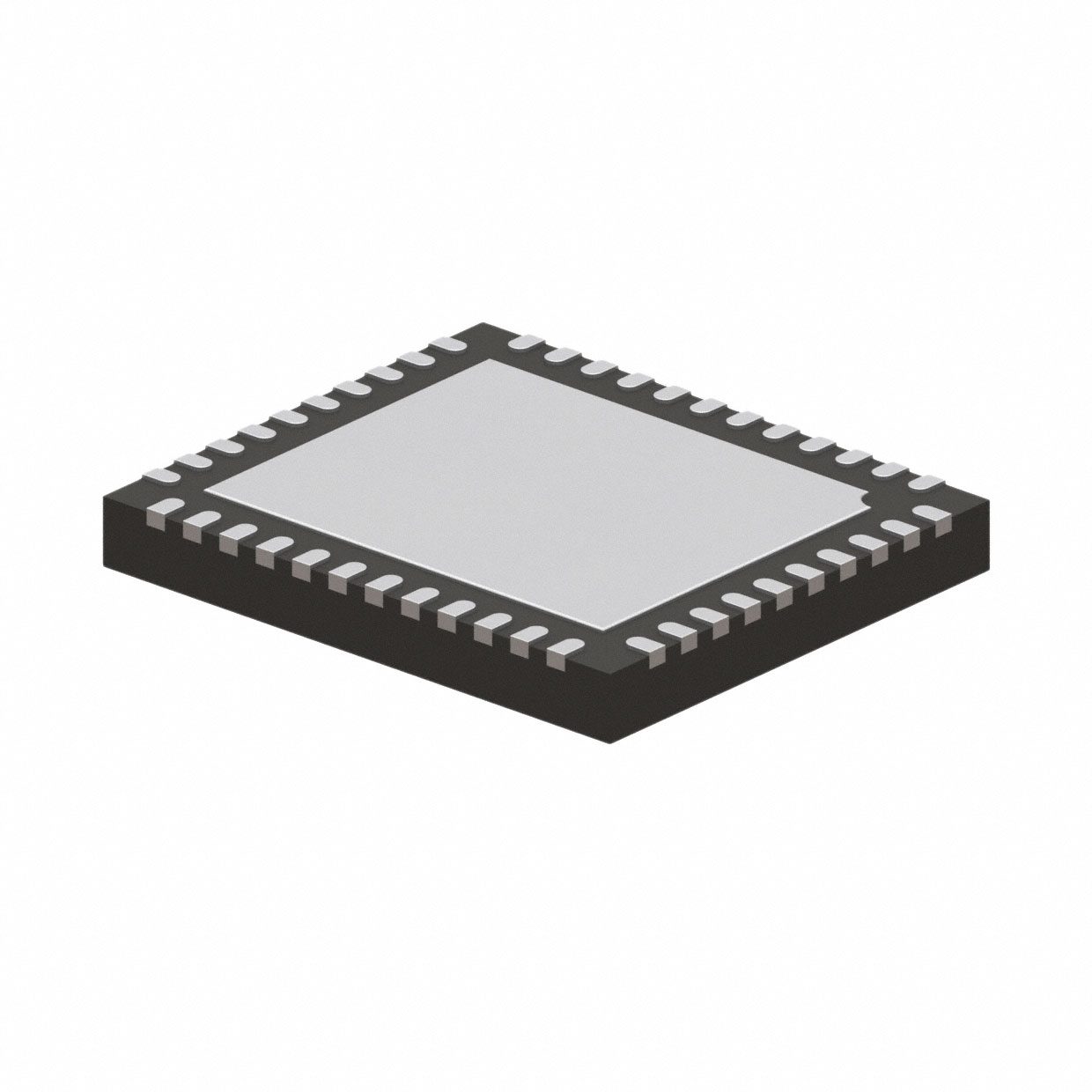

It adopts a 44-pin 6mm × 7mm QFN package

Application field

Computers and network servers

Industrial testing and measurement

High-reliability system

Video and medical imaging
