The 9ZML1252EKILF is a second-generation 2-input / 12-output differential multiplexer, suitable for Intel Purley and newer platforms. It surpasses the demanding DB1200ZL performance specifications and is backward compatible with 9ZML1232B. This device adopts low-power HCSL-compatible output to reduce power consumption and termination resistance. The 9ZML1252EKILF is suitable for PCI Express Gen 1-4 or QPI/UPI applications and provides two configurable low-drift I2O Settings, one for each input channel, to allow I2O tuning for various topologies.

The PCIe clock architecture of 9ZML1252EKILF

Public Clock (CC

Independent Reference No Spread (SRNS

Independent Reference Spread (SRIS

Its main specifications include:

PLL: With bypass

Input: HCSL

Output: HCSL

Number of circuits: 1

Ratio - Input: Output: 2:12

Differential - Input: Output: Yes/Yes

Frequency - Maximum value: 400MHz

Frequency divider/multiplier: None/None

Voltage - Power supply: 3.135V to 3.465V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

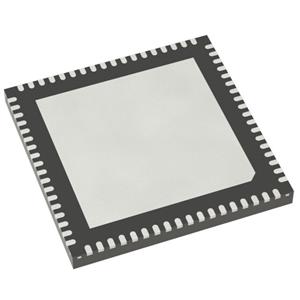

Package/Housing: 72-VFQFN

Typical applications

Servers, storage, networks, SSDS
