AD5535BKBCZ: 32-Channel, 14-Bit senseDAC® Digital-to-Analogue Converter (DAC), CSPBGA-124

Here are the product details for the digital-to-analogue converter AD5535BKBCZ:

Model: AD5535BKBCZ

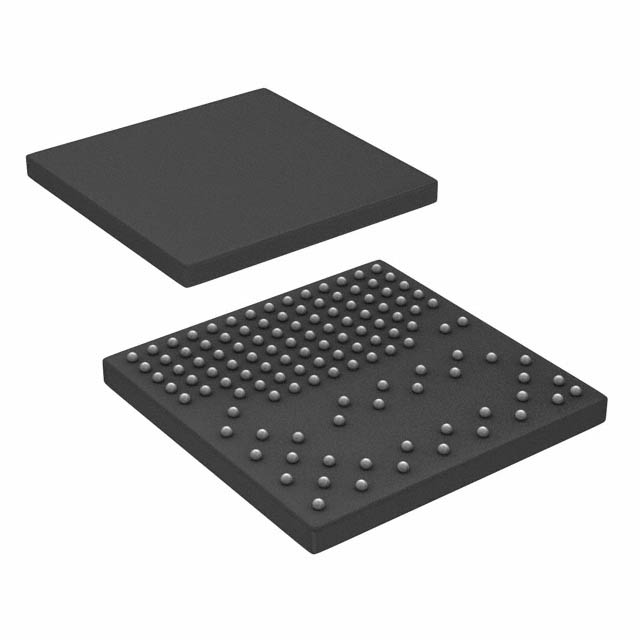

Package: CSPBGA-124

Type: Digital-to-analogue converter (DAC)

Overview:

The AD5535BKBCZ is a 32-channel, 14-bit senseDAC® with an on-chip high voltage output amplifier. The device is designed for use in optical MEMS systems. The output voltage range is programmable via the REF_IN pin. The output range is 0 V to 50 V with REF_IN = 1 V, and 0 V to 200 V with REF_IN = 4 V. Each amplifier can provide 700 μA of current output, making it particularly useful for deflecting and controlling optical MEMS mirrors.

AD5535BKBCZ Specifications:

Number of bits: 14

Number of digital-to-analog converters: 32

Build-up time: 65µs (typical)

Output type: Voltage - Buffered

Differential outputs: None

Data interfaces: SPI, DSP

Reference type: External

Voltage - Supplied, Analogue: 5V

Voltage - Supplied, Digital: 2.7V ~ 5.25V

INL/DNL ( LSB): ±0.1, ±0.5

Architecture: Resistor String DAC

Operating Temperature: -10°C ~ 85°C

Package/Housing: 124-LBGA, CSPBGA

Supplier Device Package: 124-CSPBGA (15x15)

Mounting Type: Surface Mount
