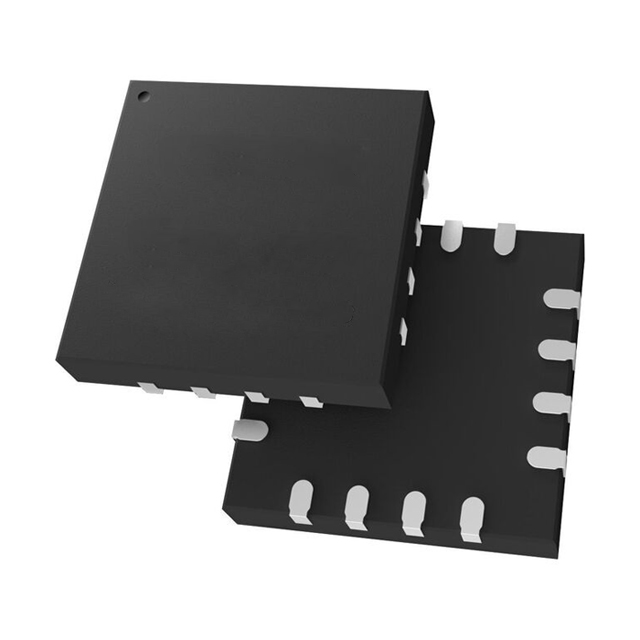

The AD5687BCPZ, part of the nanoDAC+™ family, is a low-power, dual-channel, 12-bit buffered voltage-output DAC with a built-in gain-select pin and full-scale outputs of VREF (gain = 1) or 2VREF (gain = 2). Powered from a single 2.7 V to 5.5 V supply, it is designed to guarantee monotonicity with less than 0.1% FSR gain error and 1.5 mV misalignment error performance.

Product Details:

Model: AD5687BCPZ

Package: LFCSP-16

Type: Digital-to-Analog Converter (DAC)

Family: nanoDAC+®

Number of bits: 12

Number of digital-to-analog converters: 2

Build-up time: 7µs

Output type: Voltage - Buffered Differential outputs: None Buffered

Differential Outputs: None

Data Interfaces: SPI, DSP

Reference Type: External

Voltage - Powered, Analog: 2.7V ~ 5.5V

Voltage - Powered, Digital: 1.8V ~ 5.5V

INL/DNL (LSB): ±0.12, ±1 (max)

Architecture: Resistor String DAC

Operating Temperature: -40°C ~ 105°C

Package/case: 16- WFQFN unpadded, CSP

Vendor Device Package: 16-LFCSP (3x3)

Mounting Type: Surface Mount

AD5687BCPZ Product Features:

High relative accuracy (INL): ±2 LSB (max, 16-bit)

Small package: 3 mm × 3 mm, 16-pin LFCSP package

Total Unadjustable Error (TUE): ±0.1% FSR (max)

Offset error: ±1.5 mV (max)

Gain error: ±0.1% FSR (max)

High drive capability: 20 mA, 0.5 V (supply rail)

User-selectable gain: 1 or 2 (GAIN pin)

Reset to zero or mid-level (RSTSEL pin)

1.8 V logic compatibility

50 MHz SPI with readback or daisy-chaining

Low burr: 0.5 nV-sec

Low power consumption: 3.3 mW (3 V)

2.7 V to 5.5 V supply

Temperature range: -40°C to +105 Temperature range: -40°C to +105°C
