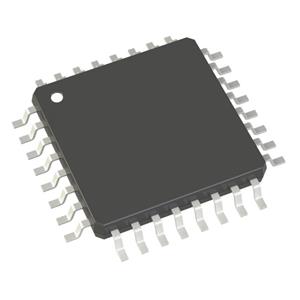

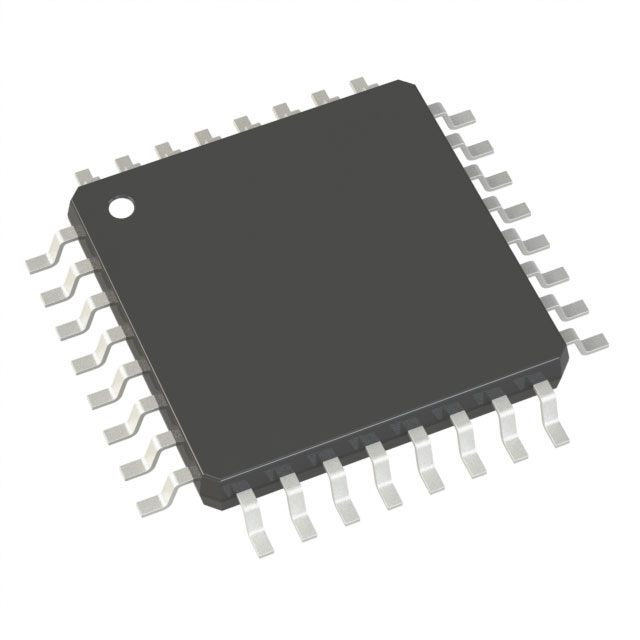

AD5762RCSUZ: Dual, High-Precision, 16-Bit, Bipolar Voltage Output Digital-to-Analog Converter (DAC), TQFP-32

Model No.: AD5762RCSUZ

Package: TQFP-32

Type: Digital-to-Analog Converter (DAC)

The AD5762RCSUZ is a dual-channel, 16-bit, serial-input, bipolar output DAC that operates from ±11.4 V to ±16.5 V. The nominal full-scale output range is ±10 V. It has a built-in output amplifier, reference voltage buffer, and proprietary power-up/power-down control circuitry.

The AD5762RCSUZ is a high-performance converter with guaranteed monotonicity, ±1 LSB integral nonlinearity (INL) error, low noise, and a 10 μs build-up time, and an on-chip 5 V reference voltage source with a maximum temperature coefficient of 10 ppm/°C. VOUTx is clamped to 0 V via a low-impedance path when the supply voltage varies during power-up.

AD5762RCSUZ Features:

Complete dual-channel, 16-bit digital-to-analog converter (DAC)

Programmable output ranges: ±10 V, ±10.2564 V, or ±10.5263 V

Integral nonlinearity (INL) error: ±1 LSB (max); differential nonlinearity (DNL) error: ±1 LSB (max)

Low noise: 60 nV/√Hz

Establishment time: 10 μs (max)

Integrated reference voltage buffer

Internal reference voltage source: 10 ppm/°C (max)

On-chip on-chip temperature sensor

Outputs controlled during power-up/down

Programmable short-circuit protection

Simultaneous update via LDAC

Outputs controlled during power-down

Asynchronous CLR clear-to-zero code

Digital misalignment and gain adjustments

Logic output control pins

DSP/microcontroller compatible serial interface

Temperature range: -40°C to +85°C

Complementary Metal Oxide Semiconductor (iCMOS) Process Technology
