F28M35M22C1RFPT is a dual-core microcontroller with an asymmetric dual-core architecture. One core (C28x) is responsible for digital signal processing and control algorithms, while the other core (Cortex-M3) is responsible for network protocol stack and graphical display interface and other tasks ‌. This design effectively balances performance, power consumption and cost, and is suitable for applications that require high-precision control and high-speed communication ‌.

The F28M35M22C1RFPT device belongs to the Concerto series of microcontrollers and has a variety of communication peripherals, including Ethernet 1588, USB OTG with PHY, Controller Local Area Network (CAN), UART, SSI, I2C and an external interface. The F28M35M22C1RFPT has the following main specifications:

Core processor: C28x/ARM® Cortex®-M3

Kernel specification: 32-bit dual-core

Speed: 75MHz/75MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, SCI, SPI, SSI, UART/USART, USB, USB OTG

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 74

Program storage capacity: 256KB/256KB

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 136KB

Voltage - Power Supply (Vcc/Vdd) : 1.2V, 1.8V, 3.3V

Data converter: A/D 20x12b

Oscillator type: -

Operating temperature: -40°C to 105°C (TJ)

Installation type: Surface mount type

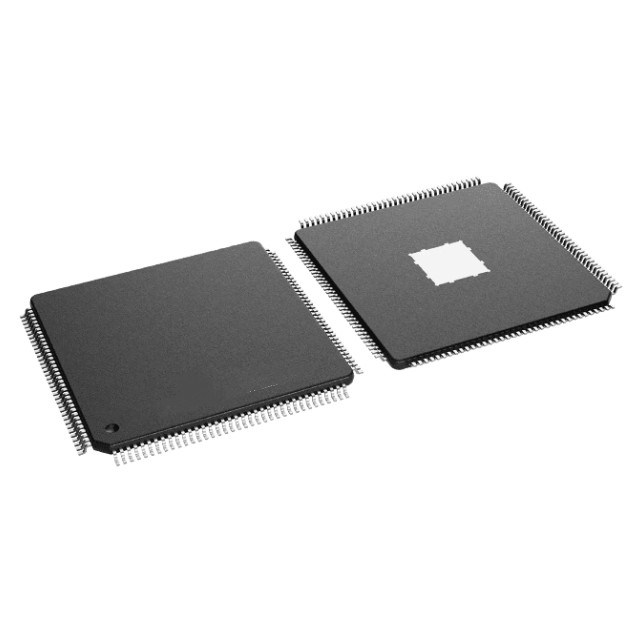

Supplier device package: 144-HTQFP (20x20)

Wide range of application scenarios

The F28M35M22C1RFPT microcontroller is widely used in green and environmentally friendly applications such as smart motor control, renewable energy, smart grids, digital power supplies and electric vehicles.
