The F28M36H33B2ZWTT Concerto microcontroller is a dual-core microcontroller launched by (TI). It combines the C28x core and the ARM Cortex-M3 core, aiming to provide real-time control and advanced connectivity functions.

The F28M36H33B2ZWTT microcontroller is equipped with multiple communication peripherals (including Ethernet 1588, USB OTG with PHY, Controller Local Area Network (CAN), UART, SSI, I2C) and an external interface. It has the following main specifications:

Core processor: C28x/ARM® Cortex®-M3

Kernel specification: 32-bit dual-core

Speed: 100MHz/150MHz

Connection capabilities: CANbus, EBI/EMI, I2C, IrDA, McBSP, SCI, SPI, SSI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 142

Program storage capacity: 512KB/768KB

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 232KB

Voltage-supply (Vcc/Vdd) : 1.14V to 3.63V

Data converter: A/D 24x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TJ)

Installation type: Surface mount type

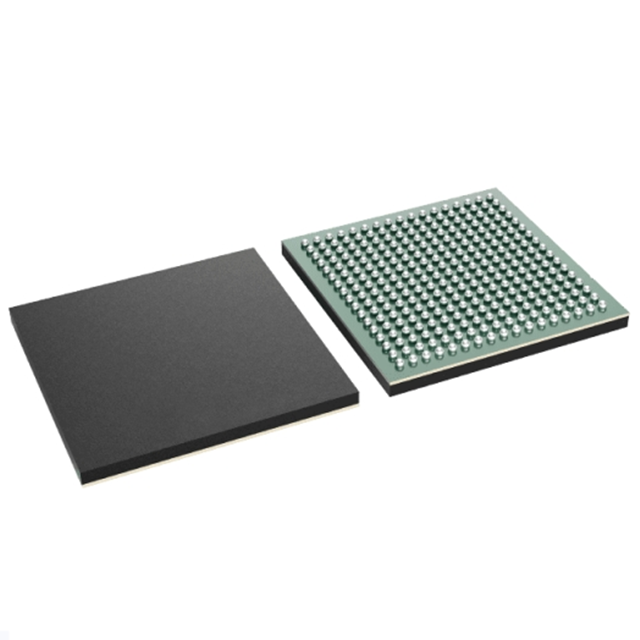

Supplier device package: 289-NFBGA (16x16)

Typical applications

Servo driver

High-end AC inverter

Industrial uninterruptible power supply (UPS

Solar inverter

Electric vehicle/hybrid electric vehicle (EV/HEV) charger

Power line communication
