AFE4462YBGR is an analog front-end for optical bio-sensing applications, such as heart-rate monitoring (HRM) and saturation of peripheral capillary oxygen (SpO2). The device supports up to 16 switching light-emitting diodes (LEDs) and up to four photodiodes (PDs).

Feature Of AFE4462YBGR

Supports signal acquisition of up to 16 phase sets

Supports up to 16 LEDs, 4 PDs

Flexible allocation of LEDs, PDs in each phase

Simultaneous signal acquisition from different sensors at different data rates

Accurate, continuous PPG monitoring:

Low current for continuous heart-rate monitoring on a wearable device with a typical value: 15 µA for an LED, 15 µA for the receiver

Peak system SNR of 115 dB

Transmitter:

8-Bit Programmable LED current with range adjustable from 25 mA to 250 mA

Mode to fire two LEDs in parallel with independent per-phase current control

Programmable LED on-time per-phase

Simultaneous support of 16 LEDs for SpO2, Multi-Wavelength HRM, and Spectroscopy

Receiver:

Supports 4 Time-Multiplexed PD Inputs

2 parallel receivers (4 sets of TIA/filter)

Individual ambient offset subtraction DAC at each TIA Input with 8-bit per-phase control and range adjustable up to 255-µA

Individual LED offset subtraction DAC at each TIA input with 9-bit per-phase control and 64-µA range

Digital ambient subtraction at ADC output

Noise filtering with programmable bandwidth

Transimpedance gain: 3.7 kΩ to 1 MΩ

Supports external clock or internal oscillator

Option to acquire data synchronized with a system clock

Automatic cancellation of DC from Ambient, LED

FIFO with 256-sample depth

SPI™ interface/ I2C interface

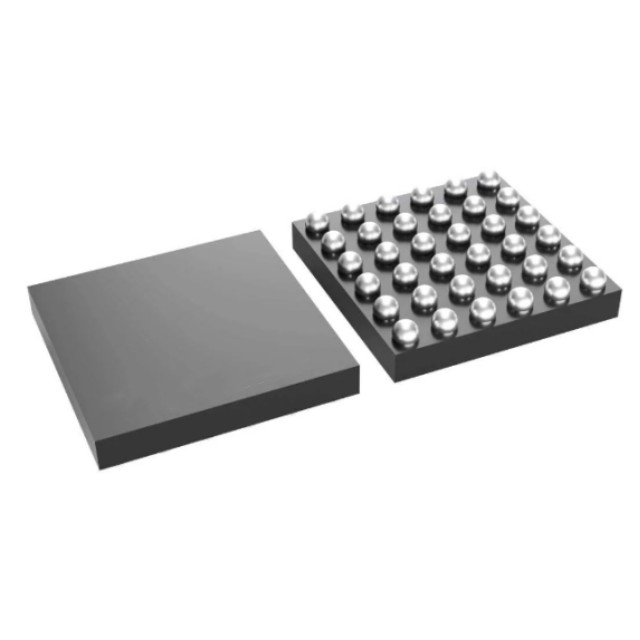

2.6-mm × 2.6-mm DSBGA, 0.4-mm Pitch

Supplies: Rx:1.7 - 1.9 V (LDO Bypass); 1.9 - 3.6 V (LDO Enabled), Tx: 3-5.5 V, IO: 1.7-RX_SUP

Applications Of AFE4462YBGR

Optical Heart-Rate Monitoring (HRM) for wearables, hearables

Heart-Rate Variability (HRV)

Pulse Oximetry (SpO2) measurements

Optical Spectroscopy
