The AFE4410YZR is a low power integrated FIFO AFE for optical heart rate monitoring and biosensing in wearable devices. It supports up to four switchable light emitting diodes (leds) and three photodiodes (PDS). This AFE also features a fully integrated LED driver with 8-bit current control. The AFE4410YZR features a high dynamic range transceiver circuit, capable of providing a dynamic range of up to 100dB, thereby precisely sensing heart rate. This AFE achieves extremely low current levels by operating in ultra-low Power (ULP) mode (set by using the ENABLE_ULP register bit).

The AFE4410YZR mainly has the following features:

Accurate and continuous heart rate monitoring

A dynamic range of up to 100dB enables precise heart rate monitoring

The typical low current used for continuous operation on wearable devices is: 30µA for leds and 25µA for receivers

Flexible pulse sorting and timing control

Use an external clock or an internal oscillator as the reference clock

FIFO with a sampling depth of 128:

Partitions can be programmed and set for each stage

The I2C and SPI interfaces can be selected through pins

Operating temperature range: -20°C to +70°C

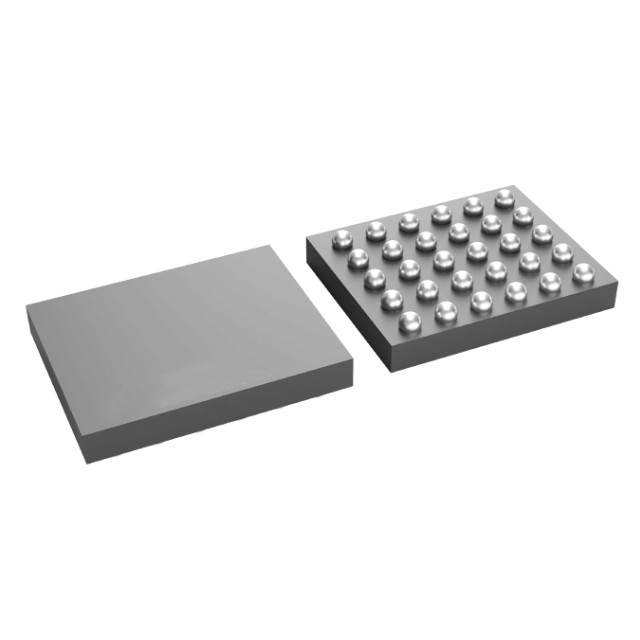

2.6mm × 2.1mm, 0.4mm pitch DSBGA package

Target application

Optical heart rate monitoring (HRM) (Wearable devices and hearing devices)

Heart rate variation Analysis (HRV)

Measurement of blood oxygen saturation (SpO2)

Maximum oxygen consumption (VO2 Max)
