The AFE5809ZCF is a highly integrated analog front-end (AFE) solution, which is designed for high-performance and small ultrasonic systems. The AFE5809ZCF integrates a complete time Gain control (TGC) imaging path and a continuous wave Doppler (CWD) path. It also enables users to select different power/noise combinations to optimize system performance. Therefore, the AFE5809ZCF is an ultrasonic simulation front-end solution that is not only suitable for high-end systems but also for portable systems.

Key specifications

Digit number: 14

Number of channels: 8

Power (W) : 158 mW

Voltage - Power supply, simulation: 1.7V - 1.9V, 3.15V - 3.6V, 5V

Voltage - Power supply, digital: 1.7V to 1.9V

Installation type: Surface mount type

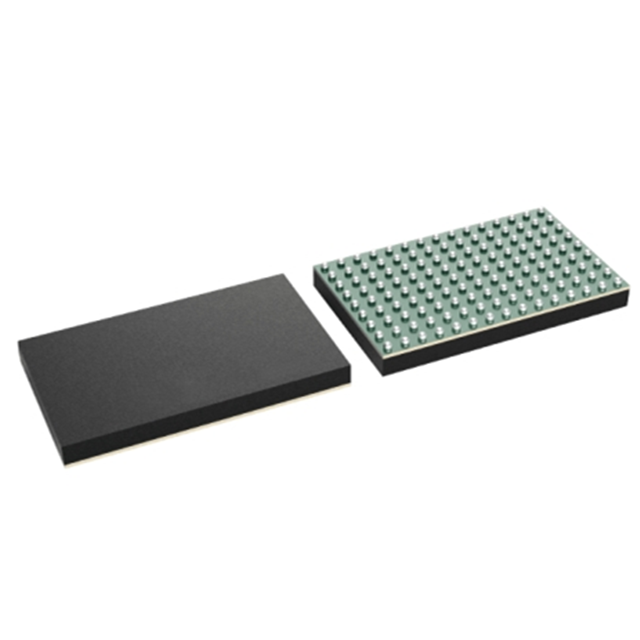

Package/Shell: 135-BGA

Application field

AFE5809ZCF is widely used in the following fields:

Medical ultrasound imaging ‌ : For high-resolution medical imaging equipment that provides clear image quality.

Non-invasive assessment device ‌ : performs well in non-invasive assessment applications that require high precision measurement.

Sonar applications ‌ : For a variety of sonar devices to enhance signal processing capabilities and system performance ‌.
