The AFE58JD48ZAV device is an integrated analog front-end (AFE) optimized for high-end medical ultrasound applications. This device is implemented through a multi-chip module (MCM), which has three bare chips: a 16-channel voltage-controlled amplifier (VCA) bare chip and two 8-channel analog-to-digital converter (ADC) bare chips.

Technical Specification

Type: Ultrasound AFE

Resolution: 16 bits

Sampling ratio: 125 MS/s

Number of channels: 16 channels

Interface type: LVDS

Power supply voltage - Maximum: 3.3V

Minimum operating temperature: 0 ° C

Maximum operating temperature: + 85 ° C

Installation style: SMD/SMT

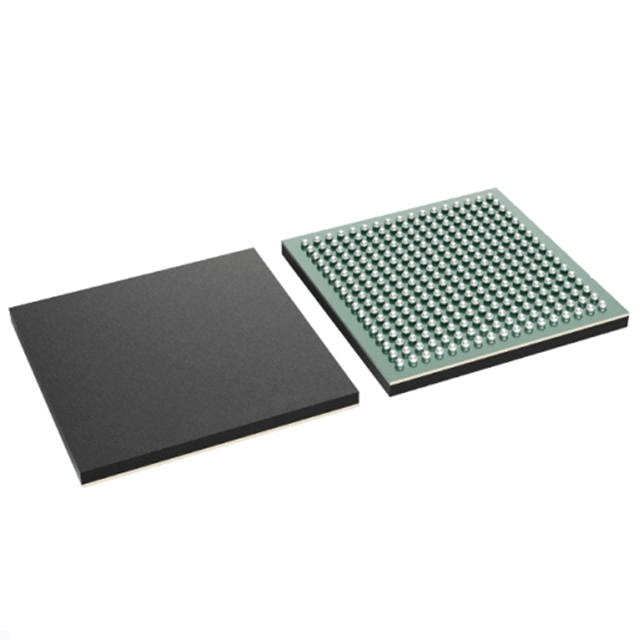

Package/Box: NFBGA-289

In addition, the AFE58JD48ZAV also includes a digital demodulator module. Its digital in-phase and orthogonal (I/Q) demodulators with programmable extraction filters accelerate the execution speed of computationally intensive algorithms at low power consumption.

This device also supports various power and noise combination options, thereby optimizing system performance. Therefore, for high-end systems powered by wall power sockets or batteries, the AFE58JD48ZAV is an ideal ultrasonic AFE solution.

Target application

Medical ultrasound imaging

High-frequency ultrasound imaging

Non-destructive testing (NDT)

Sonar, radar and lidar imaging equipment

Multi-channel data acquisition
