ADC3549IRTD: 500MSPS, 14-bit Single-Channel Analog-to-Digital Converter (ADC) with LVDS Interface

Model: ADC3549IRTD

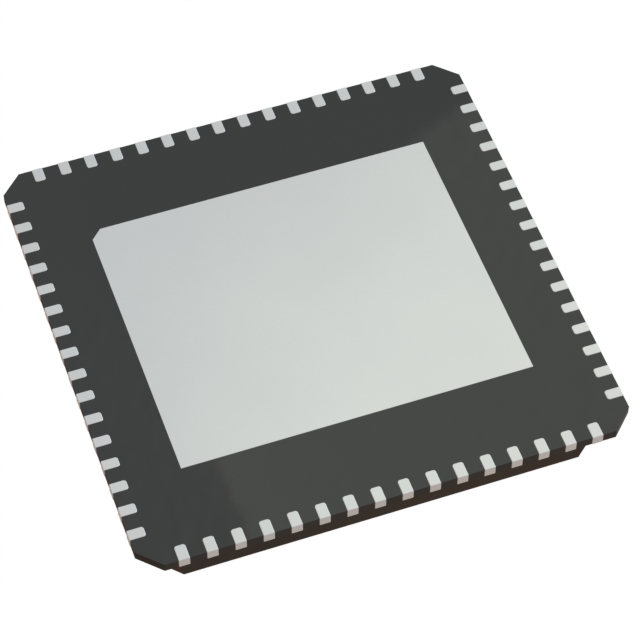

Package: VQFNP-64

Type: 14-bit Analog-to-Digital Converter (ADC)

Overview:

The ADC3549IRTD is a 14-bit, 500MSPS single-channel analogue-to-digital converter (ADC). The device is designed to achieve a high signal-to-noise ratio (SNR) and provide a noise spectral density as low as -158.5dBFS/Hz.The ADC3549IRTD includes a quad-band digital downconverter (DDC) that supports /2 wideband extraction to /32768 narrowband extraction.The DDC uses a 48-bit NCO that supports both phase coherence and phase sequential frequency hopping.

ADC3549IRTD Product Features:

14-bit, single-channel 500MSPS ADC

Noise Spectral Density: -158.5dBFS/Hz

Thermal Noise: 74.5dBFS

Single-Core (Non-Interleaved) ADC Architecture

Power Consumption:

435mW (500MSPS)

369mW (250MSPS)

Aperture Jitter: 75fs

Buffered Analogue Inputs

Programmable 100Ω and 200Ω termination

Full-scale input: 2Vpp

Full-power input bandwidth (-3dB): 1.4GHz

Spectrum performance (fIN = 70MHz, -1dBFS):

SNR: 73.8dBFS

SFDR HD2,3: 82dBc

SFDR worst-case burr: 94dBFS

Digital downconverters (DDCs)

Up to four independent DDCs

Complex numbers and real number extraction

Extraction rates: 2x, 4x to 32768x extraction

48-bit NCO phase coherent frequency hopping

DDR/serial LVDS interface

16-bit parallel SDR, DDR LVDS for DDC bypass

Serial LVDS for extraction

32-bit output option for high extraction rates
