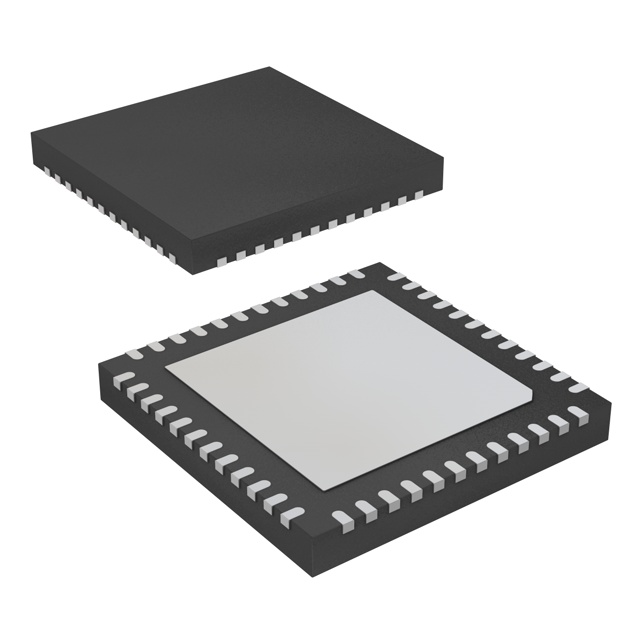

AFE159RP4RGZ: Low Power 4-Channel ECG Analog Front End (AFE), VQFN-48

Model No: AFE159RP4RGZ

Package: VQFN-48

Type: Analog Front End (AFE)

AFE159RP4RGZ Product Attributes:

Number of Bits: 24

Number of Channels: 4

Voltage - Supply, Analogue: 1.7V ~ 1.9V, 3.15V ~ 5.25V

Mounting Type: Surface Mount

Package/Case: 48-VFQFN Unpopulated Pad

Vendor Device Package: 48-VQFN (7x7)

AFE159RP4RGZ Product Features:

Integrated Signal Chain for ECG, Pacing Signal Detection, and Respiration Measurements

ECG Receiver

EMI-Resistant Inputs

Four High-Resolution Channels with Power Consumption as Low as 0.42mW per Channel

Flexible Quadruple Leads Selectable from Six Electrodes

Programmable Gain: 1.25 to 9

Input Reference Noise: 4µVPP (over 150Hz bandwidth)

Differential Input Range : ±1V (gain = 4)

CMRR: 140dB

Data rate: 250SPS to 128kSPS

Flexible power-down and standby modes

Built-in PLL and reference

1k sample master FIFO and 2k sample pacing FIFO

SPI-compatible serial interface

Analogue Supply Voltage 1: 3.15V to 5.25V

Analogue Supply Voltage 2: 1.7V to 1.9V

I/O Supply Voltage: 1.65V to 3.6V
