ADS8681WRUM: 16-bit Single-Channel SAR ADC with Programmable Bipolar Input Range

Model: ADS8681WRUM

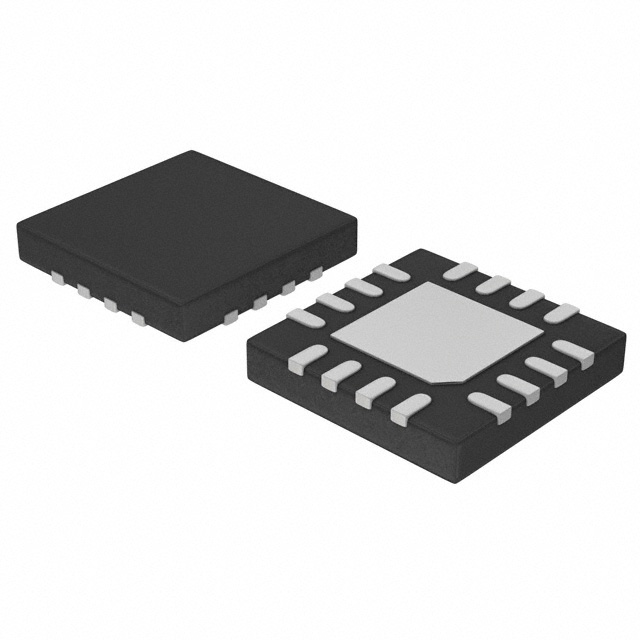

Package: WQFN-16

Type: 16-bit Analog-to-Digital Converter (ADC)

Description Details:

The ADS8681WRUM is an integrated data acquisition system based on a successive approximation type (SAR) analog-to-digital converter (ADC). The device features a high-speed, high-precision SAR ADC, integrated analogue front-end (AFE) input driver circuits, overvoltage protection circuits up to ±20V, and an on-chip reference voltage of 4.096V with very low temperature drift.

ADS8681WRUM Product Features:

Number of Bits: 16

Sample Rate (per second): 1M

Number of Inputs: 1

Input Type: Differential, Single-Ended

Data Interface: SPI

Configuration: PGA-ADC

Ratio - S/H:ADC: 0:1

Number of A/D Converters: 1

Architecture: SAR

Reference Type: External, Internal

Voltage - Supplied, Analogue: 4.75V ~ 5.25V

Voltage - Supplied. Digital: 1.65V ~ 5.25V

CHARACTERISTICS: PGA

OPERATING TEMPERATURE: -40°C ~ 125°C

PACKAGE/HOUSING: 16-WQFN Unpadded

SUPPLIER DEVICE PACKAGING: 16-WQFN (4x4)

MOUNTING TYPE: SURFACE MOUNTED
