Trade Name:Analog To Digital Converter (ADC)
Brand:TI
Particular Year:25+
Package:VQFN-24
Delivery Date:New and Original
Stock: 5000pcs

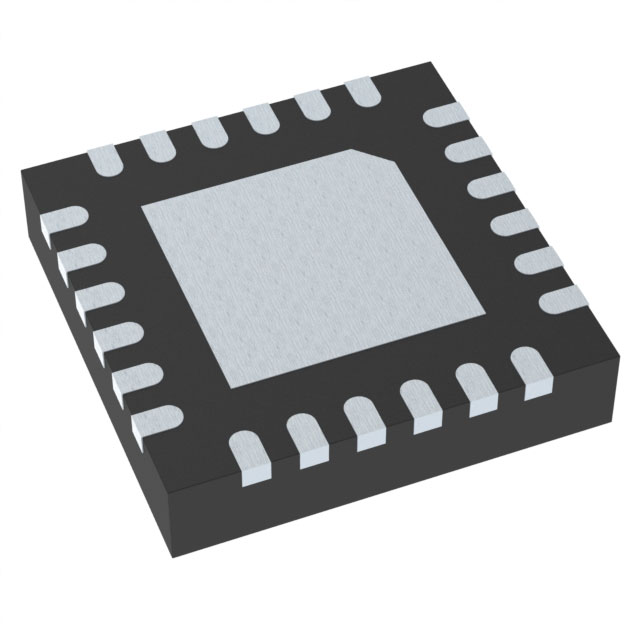

ADS8920BRGER: 1MSPS, 16-Bit Single-Channel SAR Analog To Digital Converter (ADC)
Type: ADS8920BRGER
Package: VQFN-24
Type: 16-Bit Analog To Digital Converter (ADC)
Description Details:
The ADS8920BRGER is a single-channel, high-precision, 16-bit successive approximation register (SAR)-based analog-to-digital converter (ADC) with an integrated reference buffer and an integrated low dropout voltage regulator (LDO). The ADS8920BRGER has an internal data parity function, which can be appended to the ADC data output. ADC data validation by the host using parity bits improves system reliability.
ADS8920BRGER Product Features:
Resolution: 16-bit
High sample rate with no delayed output: 1MSPS
Integrated LDO supports single-supply operation
Low-power reference buffer with no dropout
Outstanding AC and DC performance:
SNR: 96.8dB, THD: -125dB
INL: ±0.25 LSB
DNL: ±0.2 LSB, 16-bit, lossless code
Wide Input Range:
Unipolar Differential Input Range: ±VREF
VREF Input Range: 2.5V to 5V
Low Power Operation from a Single Supply
Enhanced SPI Digital Interface
Interface SCLK: 18MHz at 1MSPS
Configurable Data Parity Output
Extended Temperature Range: -40°C to +125°C
Model
Brand
Package
Quantity
Describe
ADI
QFN-52
5000
8-Channel, 14-Bit Analog to Digital Converter (ADC) with Synchronous Sampling, QFN-52
ADI
LFCSP-32
5000
4-Channel, 4.8kHz, Ultra-Low Noise, 24-Bit Analog-to-Digital Converter (ADC), LFCSP-32
TI
VQFN-32
5000
12-bit Synchronous Sampling Analogue to Digital Converter (ADC), VQFN-32
TI
VQFN-32
5000
Synchronous Sampling 14-bit Analogue to Digital Converter (ADC), VQFN-32
