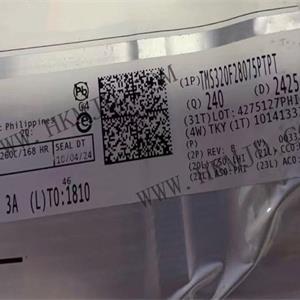

The TMS320F28075PTPT is a high-performance 32-bit digital signal controller belonging to the C2000™ C28x Piccolo™ series of microcontrollers, specifically designed for real-time control applications. The device is housed in a 176-pin HLQFP package, operates within a temperature range of -40°C to 105°C, features a 120MHz clock speed, 512KB flash memory, and 100KB RAM, and integrates a floating-point unit (FPU) and trigonometric unit (TMU), making it suitable for high-performance control applications such as industrial motor drives, digital power supplies, and electric vehicles.

Product Attributes

Manufacturer: Texas Instruments

Series: C2000™ C28x Piccolo™, Functional Safety (FuSa)

Packaging: Tray

Part Status: In Stock

Core Processor: C28x

Core Specifications: 32-bit Single-Core

Speed: 120MHz

Connectivity: CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART, USB

Peripherals: DMA, POR, PWM, WDT

I/O Count: 97

Program Memory Capacity: 512KB (256K x 16)

Program Memory Type: Flash

RAM Size: 50K x 16

Voltage - Power Supply (Vcc/Vdd): 1.14V to 3.47V

Data Converter: A/D 17x12b; D/A 3x12b

Oscillator Type: External

Operating Temperature: -40°C to 105°C (TA)

Mounting Type: Surface Mount

Supplier Device Package: 176-HLQFP (24x24)

Package/Housing: 176-LQFP Bare Pad

The TMS320F28075PTPT is widely used in industrial and embedded systems, making it an ideal choice for various applications:

Industrial Automation: Such as PLC control, smart sensors, etc., enabling precise industrial process control.

Motor control: such as variable frequency drives, servo drives, etc., enabling efficient and stable motor drive.

Solar inverters: achieving maximum power point tracking (MPPT) and grid connection in photovoltaic systems.

Power conversion: such as UPS power supplies, switching power supplies, etc., enabling efficient power management.

Digital power management: used for power management in data centers, communication base stations, and other devices, improving power efficiency and reliability.
