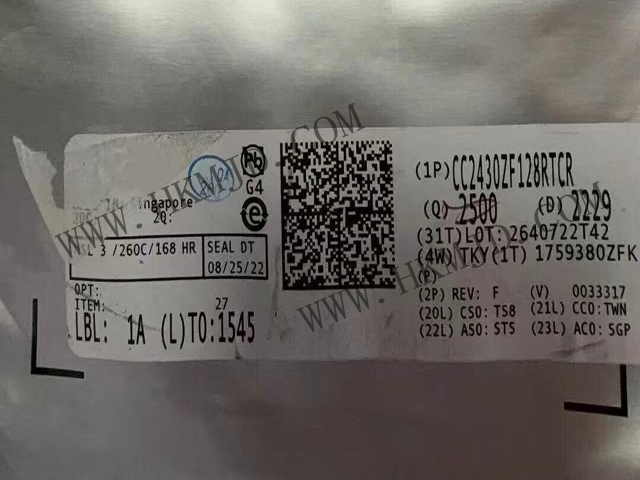

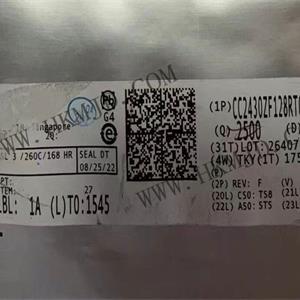

For picture reference, please see the specifications
< >

Commodity Model:CC2430ZF128RTCR

Trade Name:RF System-on-Chip - SoC

Brand:TI

Particular Year:22+

Package:VQFNP-48

Delivery Date:New and Original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
CC2430ZF128RTCR
Package
VQFNP-48
Describe
System-on-Chip Solution for 2.4 GHz IEEE 802.15.4 / ZigBee™

Product Description

The CC2430ZF128RTCR is a system-on-chip (SoC) developed by Texas Instruments that integrates an RF transceiver and an 8051 MCU, specifically designed for IEEE 802.15.4 / ZigBee® wireless communication applications. The chip is packaged in a 48-VQFNP package and is suitable for low-power, short-range wireless sensor networks, such as smart home, industrial control, and building automation systems.


CC2430ZF128RTCR Key Features

Integrated RF + MCU: Built-in 8051 microcontroller (8-bit) and 2.4GHz RF transceiver, providing a complete wireless communication solution.

Low-power design: Receive current of 26.7mA and transmit current of 26.9mA, suitable for battery-powered devices.

High sensitivity: -92dBm receive sensitivity, enhancing signal coverage range.

Rich memory resources: 128KB Flash + 8KB RAM, supporting complex application development.

Multi-protocol support: Compatible with ZigBee® and IEEE 802.15.4 standards, suitable for Mesh networks.

Wide operating voltage range: 2V to 3.6V, adaptable to various power supply environments.


CC2430ZF128RTCR Product Specifications

Product Type: RF System-on-Chip (SoC)

Type: Zigbee

Core: 8051

Operating Frequency: 2.4 GHz

Maximum Data Rate: 250 kbps

Output Power: 0 dBm

Sensitivity: -92 dBm

Power Supply Voltage - Minimum: 2 V

Power Supply Voltage - Maximum: 3.6 V

Receive Supply Current: 27 mA

Transmit Supply Current: 27 mA

Program Memory Size:    128 kB

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +85°C

Package/Enclosure:    VQFNP-48

ADC Resolution:    12-bit

Data Bus Width:    8-bit

Data RAM Size:    8 kB

Interface type: 2-Wire, 3-Wire, 4-Wire, SPI, UART

Humidity sensitivity: Yes

Mounting style: SMD/SMT

ADC channel count: 8

Input/output pin count: 21 I/O

Timer count: 4 Timers

Processor series: CC243
