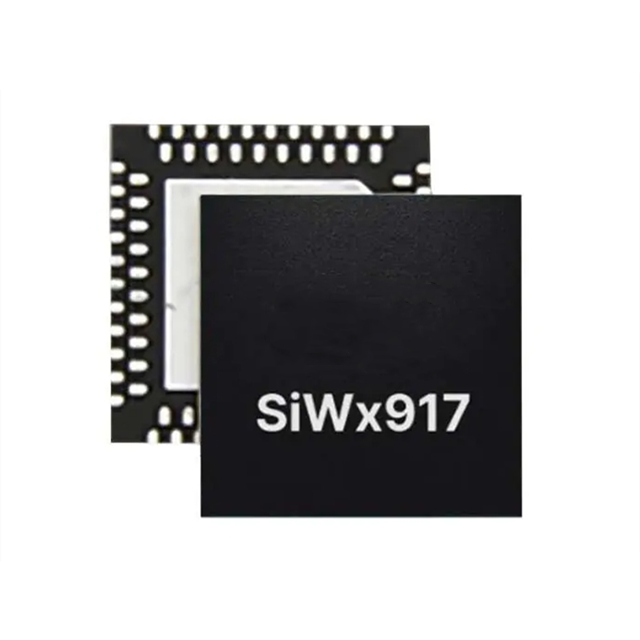

The SIWG917M111XGTBA wireless SoC has the lowest power consumption among Silabs Wi-Fi 6 series devices. This chip is an ideal choice for ultra-low power iot wireless devices, supporting Wi-Fi, Bluetooth, Matter and IP network protocols, and enabling secure cloud connections. This SoC is also highly suitable for developing battery-powered devices that require long battery life.

Main specifications

Type: TxRx + MCU

Radio Frequency Series/standards: Bluetooth, WiFi

Protocols: 802.11b/g/n/ax, Bluetooth v5.4, Matter

Modulation: -

Frequency: 2.412GHz to 2.484GHz

Data rate (maximum) : 54Mbps

Power - Output: 19.5dBm

Sensitivity: -97.5dBm

Storage capacity: 672kB SRAM

Serial interfaces: ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART

GPIO: 45

Voltage - Power supply: 1.8V, 3.3V

Current - reception: 10mA to 18mA

Current - transmission: 10mA to 17mA

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Housing: 84-QFN (7x7)

The target application scenarios of SIWG917M111XGTBA include smart home, consumer health and wearable devices, medical care, industry, retail, smart buildings and cities, and asset tracking.
