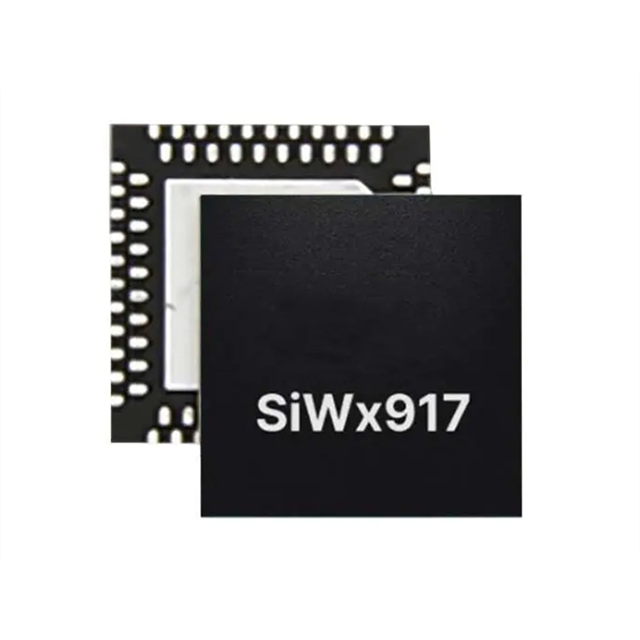

The SIWG917M100MGTBA SoC is an ideal choice for ultra-low power iot wireless devices that require long battery life. The SIWG917M100MGTBA SoC includes ultra-low power Wi-Fi® 6 and Bluetooth® Low Power (LE) 5.4 wireless CPU subsystems. And integrated ARM® Cortex®-M4F microcontroller (MCU) application subsystem, security features, peripheral devices and power management subsystem, embedded SRAM, 8192KB flash memory and enhanced security engine All of these are integrated into a QFN package with dimensions of 7 x 7 x 0.85mm.

Core features

Wi-Fi 6 single band 2.4GHz and Bluetooth Low Energy 5.4 wireless radio

ARM® Cortex®-M4F application MCU, up to 180 MHz

Integrated baseband processor, RF transceiver, high-power amplifier, balanced-unbalanced converter and RF switch

SRAM 672 KB

Encapsulated flash memory (up to 8MB), and supports up to 16MB of optional external flash memory

Encapsulate PSRAM (up to 8MB) and support up to 16MB of optional external PSRAM

The offloading processing of protocols and network stacks is achieved through network wireless processors: Wi-Fi, BLE, TCP/IP, TLS. MQTT and DHCP clients are unloaded from the application MCU

Encrypted in-place execution

Physical Non-cloning Function (PUF). Unique device private key

Target application

Smart home

Consumer health and wearable devices

Medical care

"Industry

Retail

Intelligent buildings and cities

Asset tracking
