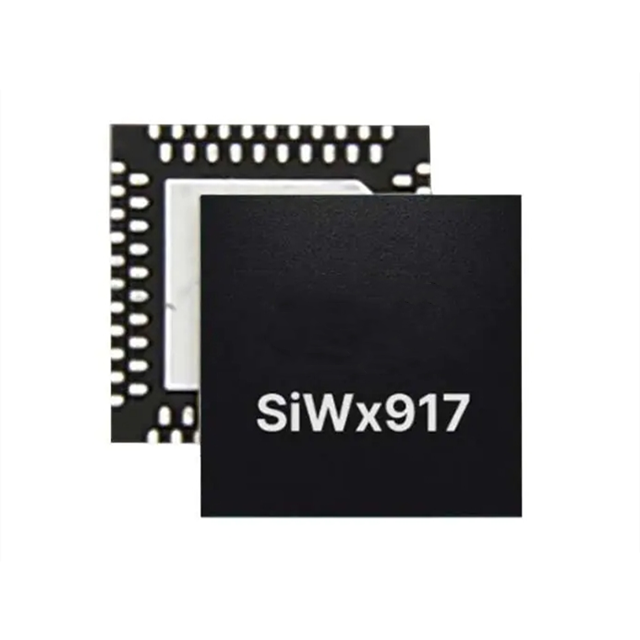

SIWG917M141XGTBA is a Wi-Fi 6 and Bluetooth wireless communication system-on-chip launched by SILICON. It adopts a 7×7mm QFN package and is specifically designed for low-power Internet of Things devices. The following are its core parameters:

Type: TxRx + MCU

Radio Frequency Series/standards: Bluetooth, WiFi

Protocols: 802.11b/g/n/ax, Bluetooth v5.4, Matter

Modulation: -

Frequency: 2.412GHz to 2.484GHz

Data rate (maximum) : 54Mbps

Power - Output: 19.5dBm

Sensitivity: -97.5dBm

Storage capacity: 672kB SRAM

Serial interfaces: ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART

GPIO: 45

Voltage - Power supply: 1.8V, 3.3V

Current - reception: 10mA to 18mA

Current - transmission: 10mA to 17mA

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Packaging/Housing: 84-QFN

In addition, the wireless subsystem consists of a network wireless processor operating at a speed of up to 160 MHz, baseband digital signal processing, analog front end, 2.4 GHz RF transceiver and integrated power amplifier. The application subsystem consists of an ARM® Cortex®-M4F operating at a frequency of up to 180 MHz, embedded SRAM, flash memory and a sensor hub. The ARM® Cortex®-M4F is specifically designed for peripheral devices and application-related processing, while the network wireless processor runs the wireless and network protocol stack on an independent thread, thus providing a fully integrated solution that can be directly used in various embedded wireless iot applications.

The target application scenarios of SIWG917M141XGTBA include smart home, consumer health and wearable devices, medical, industrial, retail, smart buildings and cities, and asset tracking.
