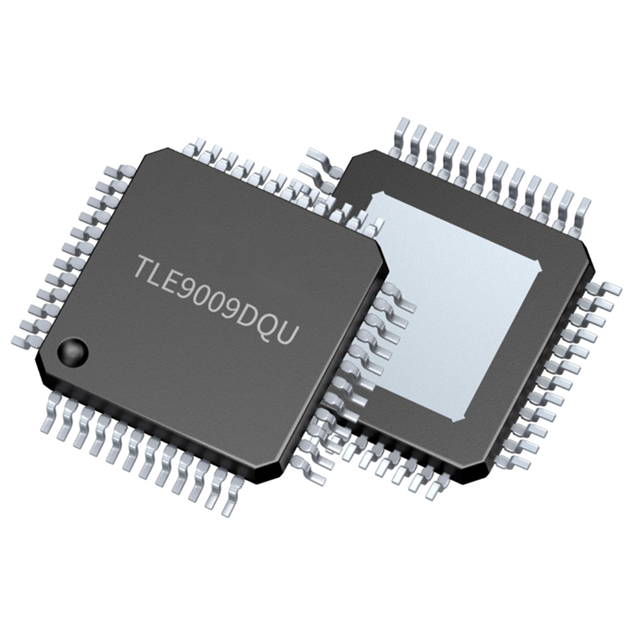

The TLE9009DQU lithium-ion battery monitoring and balancing IC is specifically designed for lithium-ion battery packs in automotive, industrial and consumer applications. These applications include mild hybrid electric vehicles (MHEV), hybrid electric vehicles (HEV), plug-in hybrid electric vehicles (PHEV), pure electric vehicles (BEV), energy storage systems (ESS), electric bicycle BMS and home energy storage. In addition, the TLE9009DQU supports battery voltage and temperature measurement, battery balancing, isolated communication with the main battery controller, and safety diagnostic functions.
The TLE9009DQU has the following main features:
Balance and monitor up to 9 batteries
Robust 90V/130nm automotive technology
Each battery has a 16-bit Δ-ΣADC
Built-in digital filter (cut-off frequency 70Hz)
Secondary side ADC for E2E security mechanism
Digital pressure compensation
Infineon CDD compatibility
PSoC HVPA group monitor compatibility
5 NTC channels + 4 GPIOs
UART and capacitive coupling interface
Support Daisy chain communication
Support ring communication mode
Support ASIL D BMS security applications
Performance parameters
Function: Multi-functional controller
Battery chemical composition: Lithium ions
Battery count: 9
Fault protection: Overcurrent
Interface: -
Operating temperature: -40°C to 150°C (TJ)
Package/Shell: 48-TQFP
Model
Brand
Package
Quantity
Describe
ADI
SSOP-48
3000
4th generation 12-channel multi-unit battery monitor with integrated Daisy link port
ADI
SSOP-48
4000
4th generation 12-channel multi-unit battery monitor with integrated Daisy link port
TI
HTQFP-64
5000
ASIL-D compliant automotive grade 16 cell series precision battery monitor, balancer and integrated protector
TI
HTQFP-64
6000
3 to 6 Cell Series Li-Ion Battery Monitor and Secondary Protection for Automotive Battery Packs
