The LTC6813ILWE-1 is a multi-cell battery pack monitor that can measure the voltage of up to 18 series-connected batteries and has a total measurement error of less than 2.2mV. The battery measurement range from 0V to 5V makes the LTC6813ILWE-1 a suitable choice for most battery chemical compositions. All 18 batteries can complete the measurement within 290μs, and a lower data acquisition rate can be selected to achieve high noise suppression.

The LTC6813ILWE-1 can be powered directly from a battery pack or an isolated power supply. The LTC6813ILWE-1 features passive charge balance for each battery and individual PWM duty cycle control for each battery. Other features include A built-in 5V voltage regulator, 9 universal I/O wires and a sleep mode (in which current consumption is reduced to 6μA).

Application scenarios

The LTC6813ILWE-1 is suitable for a variety of application scenarios, including:

Electric vehicles and hybrid electric vehicles

Backup battery system

Power grid energy storage

High-power portable devices

Performance parameters

Function: Battery monitor

Battery chemical composition: Multi-chemical

Battery count: 1 to 18

Fault protection: -

Interface: SPI

Operating temperature: -40°C to 85°C (TJ)

Grade: Automotive grade

Installation type: Surface mount type

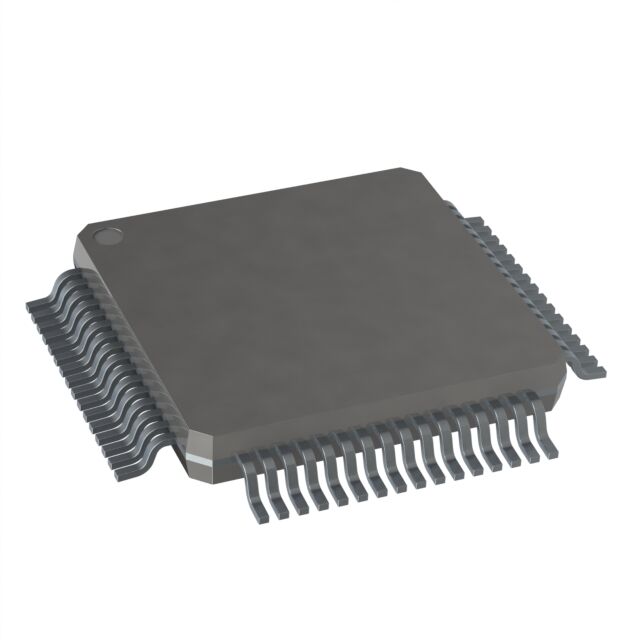

Package/Shell: 64-LQFP-EP
