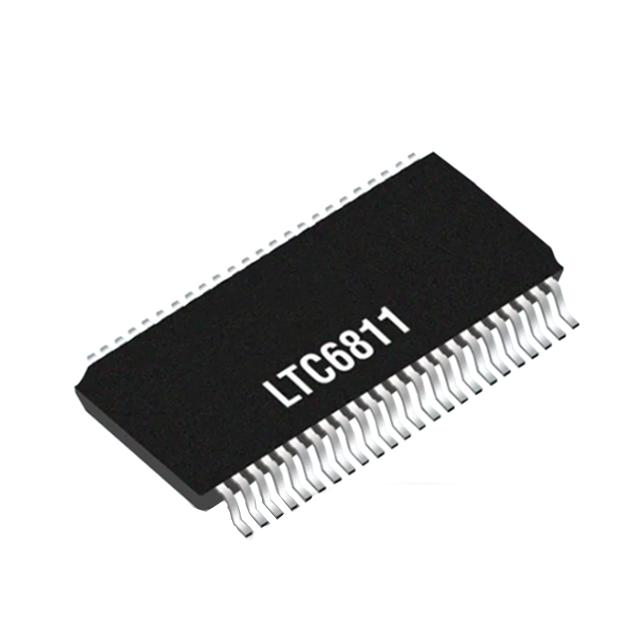

LTC6811IG-1 is 4th generation 12-channel multi-cell battery monitor with integrated Daisy link port, intended for devices requiring high precision battery management such as portable electronic devices, electric vehicles, etc. ‌. The LTC6811IG-1 can be directly powered by a battery pack or an isolated power supply. The LTC6811IG-1 features passive charge balance for each battery and individual PWM duty cycle control for each battery. Other features include an integrated 5V regulator, five general-purpose I/O wires and A sleep mode (in which current consumption is reduced to 4μA).

The LTC6811IG-1 has the following main features:

Pin-compatible upgrade device for LTC6804

Up to 12 series-connected batteries can be measured

The maximum total measurement error is 1.2mV

The stackable architecture can support hundreds of batteries

Built-in isoSPI™ interface

1Mb isolated serial communication

It uses a single twisted-pair cable, up to 100 meters long

Low EMI sensitivity and radiation

All battery measurements in the system can be completed within 290μs

Synchronous voltage and current measurement

16-bit ΔΣ ADC with programmable third-order noise filter

Designed for systems that comply with the ISO26262 standard

Passive battery charge balance using a programmable timer

Five universal digital I/O or analog inputs

Temperature or other sensor input

It can be configured as an I2C or SPI master controller

4μA sleep mode power supply current

48-pin SSOP package

Typical application fields

Electric vehicles and hybrid vehicles

Backup battery system

Power grid energy storage

High-power portable devices
