The AD9613BCPZ-210 is a 12-bit dual-channel analog-to-digital converter (ADC) with a sampling rate of 210 MSPS and operating voltage of 1.8V‌‌. This product is suitable for communication applications that require low cost, small size, wide bandwidth and versatility ‌.

Technical Specification

The AD9613BCPZ-210 has the following main specifications:

Digit number: 12

Sampling rate (per second) : 210M

Input number: 2

Input type: Differential

Data interface: LVDS - Parallel

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 2

Architecture: Pipeline

Reference type: Internal

Voltage - Power supply, simulation: 1.7V to 1.9V

Voltage - Power supply, digital: 1.7V to 1.9V

Feature: Synchronous sampling

Operating temperature: -40°C to 85°C

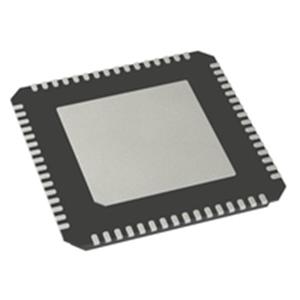

Package/Shell: 64-LFCSP

Installation type: Surface mount type

Application field

The AD9613BCPZ-210 is suitable for a wide range of communication applications that require high-speed sampling, including but not limited to wireless communication, test and measurement, and instrumentation ‌. Its high performance and multi-functionality enable it to excel in demanding communication systems.
