The AD9633BCPZ-105 is a four-channel, 12-bit analog-to-digital converter (ADC) with an on-chip sampling-hold circuit, aiming to achieve low cost, low power consumption, small size and ease of use. The AD9633BCPZ-105 operates at a conversion rate of up to 105 MSPS and is optimized for applications where a small package size is crucial to achieve outstanding dynamic performance and low power consumption.

The AD9633BCPZ-105 requires a single 1.8V power supply and a sampling rate clock compatible with LVPECL/CMOS/LVDS for full performance operation, without the need for external references or driver components in many applications ‌.

Main characteristics

High conversion rate ‌ : 105 MSPS

Low power ‌ : 100mW per channel at 125MSPS

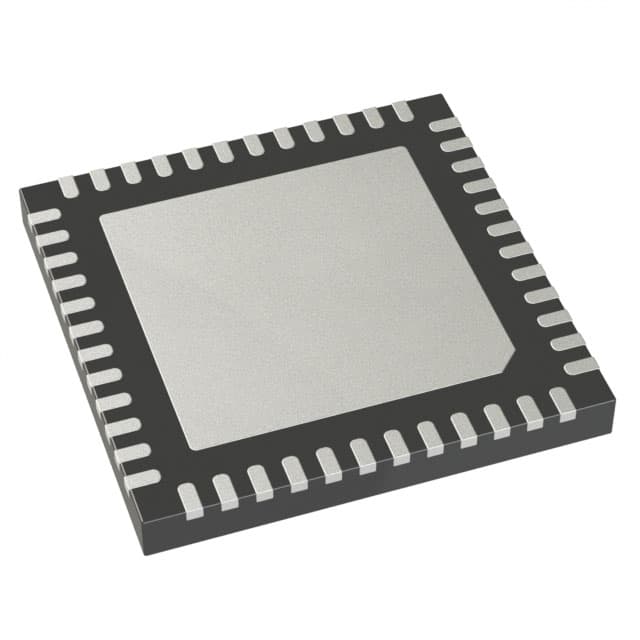

Small size ‌ : 48-pin LFCSP package

Dynamic performance ‌ : Signal-to-noise ratio (SNR) of 71dB, spurious dynamic range (SFDR) of 91dBc‌

Temperature range ‌ : Operating temperature -40°C to +85°C

Interface type ‌ : Serial LVDS

Supported features ‌ : Programmable output clock and data alignment, digital test mode generation including built-in deterministic and pseudo-random modes, and custom user-defined test mode input via serial port interface (SPI) ‌.

Application field

AD9633BCPZ-105 is applicable to a variety of application fields, including:

Medical ultrasound

High-speed imaging

Orthogonal radio frequency receiver

Diversified radio frequency receiver

Test equipment
