The AD9637BCPZ-40 analog-to-digital converter is an 8-channel, 12-bit, 40 MSPS (ADC) with an on-chip sampling-hold circuit. It is specifically designed for low cost, low power consumption, small size and ease of use. This product features outstanding dynamic performance and low power consumption characteristics, which is of great significance for applications with small package sizes.

Product advantages

1. Small size: Integrate 8 ADCs in a small package, saving space.

2. Low power consumption: 60 mW (80 MSPS) per channel, with adjustable power options.

3. Easy to use: The Data clock output (DCO) operates at a frequency as high as 480 MHz and supports double Data Rate (DDR) operation.

4. Flexible usage: SPI control offers rich and flexible features, which can meet the requirements of various specific systems.

5. Pin-compatible with AD9257 (8-channel 14-bit ADC).

Application scenarios

The AD9637BCPZ-40 is suitable for a wide range of applications that require high precision, high speed data conversion, such as communication, test and measurement, industrial control ‌. Its low power consumption design and high signal-to-noise ratio make it particularly suitable for portable devices and systems with strict power consumption requirements ‌.

Performance parameters

Resolution: 12 bits

Number of channels: 8 channels

Interface type: SPI

Sampling ratio: 40 MS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 1.8V

Digital power supply voltage: 1.8V

SNR - Signal-to-Noise Ratio: 72 dBFS

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

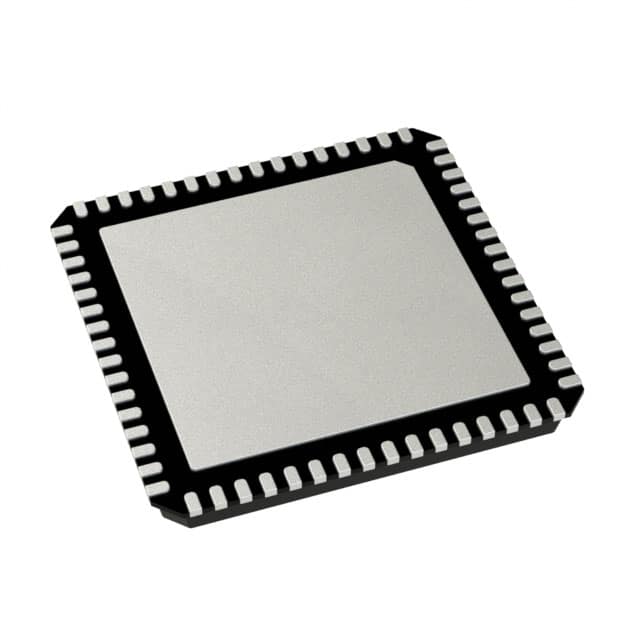

Package/Box: LFCSP-64
